1. Scope of application:

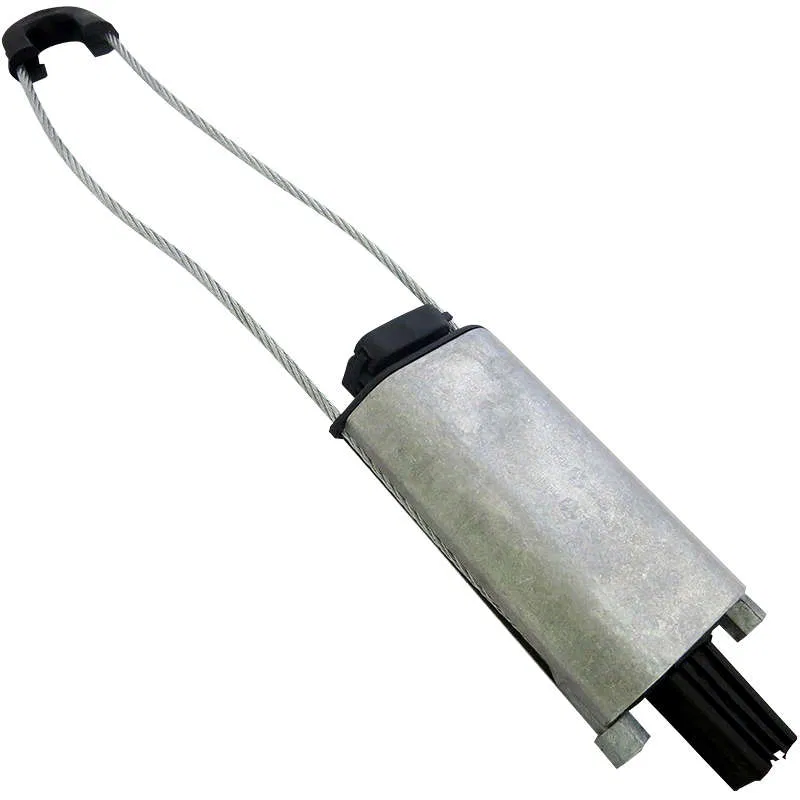

Anchor clamp PA-1000 is designed for anchor (tension) fastening of the insulated carrying conductor of the SIP-2 wire, as well as for fastening self-supporting optical cable on supports of overhead power lines (OHL 0.4/1 kV) and various structures. The clamp is installed without the use of tools.
2. Technical characteristics:
The clamp body is made of aluminum alloy; the insert, wedges, and clamp – of plastic. The clamp wire is made of stainless steel, with ball fittings on both ends for ease of installation. The clamp is made in climatic execution UHL category 1 according to GOST 15150. The clamp is resistant to UV radiation, high and low temperatures, and thermal and light effects of solar radiation.
SIP carrying conductor cross-section, sq.mm – 25-35;
Optical cable diameter, mm – 8-12;
Minimum breaking load, kN – 10;
Distance between the body and the suspension point, mm – 275±5;
Clamp mass, kg – 0.4;
Operating temperature, °C – from -60 to +50
