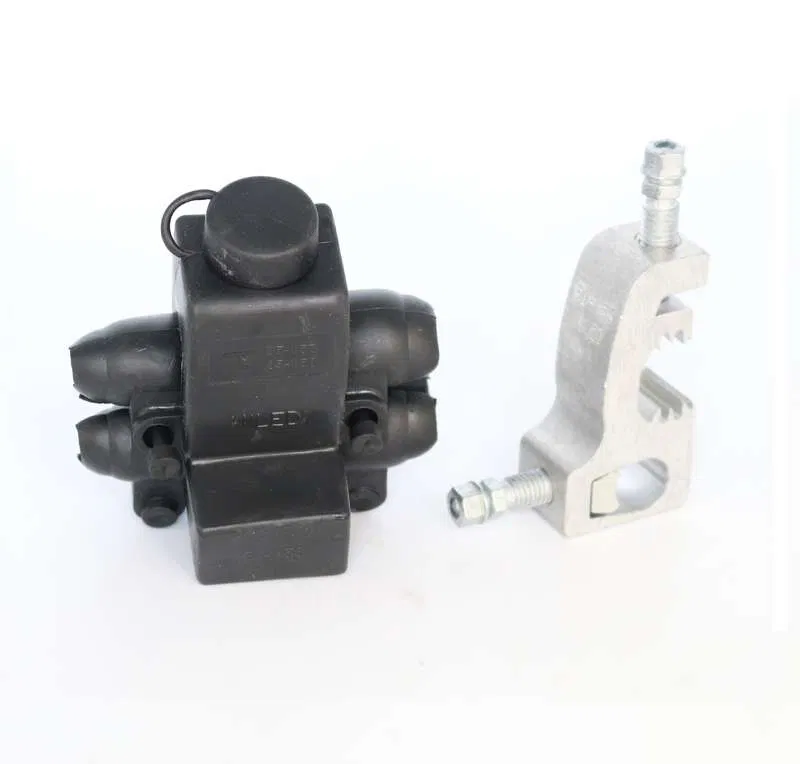

Branch clamp P 71 (35-95/4-54 sq.mm) with cover NILED 11000451

NILED P 71 11000451 branch clamp is used to ensure reliable electrical contact by piercing the insulation of conductors on the main line and stripping at the branch. Control of the tightening torque during insulation piercing of the main wire is performed by a bolt with a 10 mm hexagonal breakaway head. The contact parts of the clamp are lubricated with high-melting-point grease. APPLICATION AREA The function of the branch clamp is to create a single conductor branch from the main line to organize a new main line or for building entry. •PRINCIPLE OF OPERATION The branch clamp typically has a plate-type clamping mechanism and provides contact between the main line and the branched conductor. Electrical connection with the insulated conductor is ensured by piercing the insulation; the required tightening torque is achieved by using a breakaway bolt.
