Price on request
Analogues by specifications
Stock by warehouse

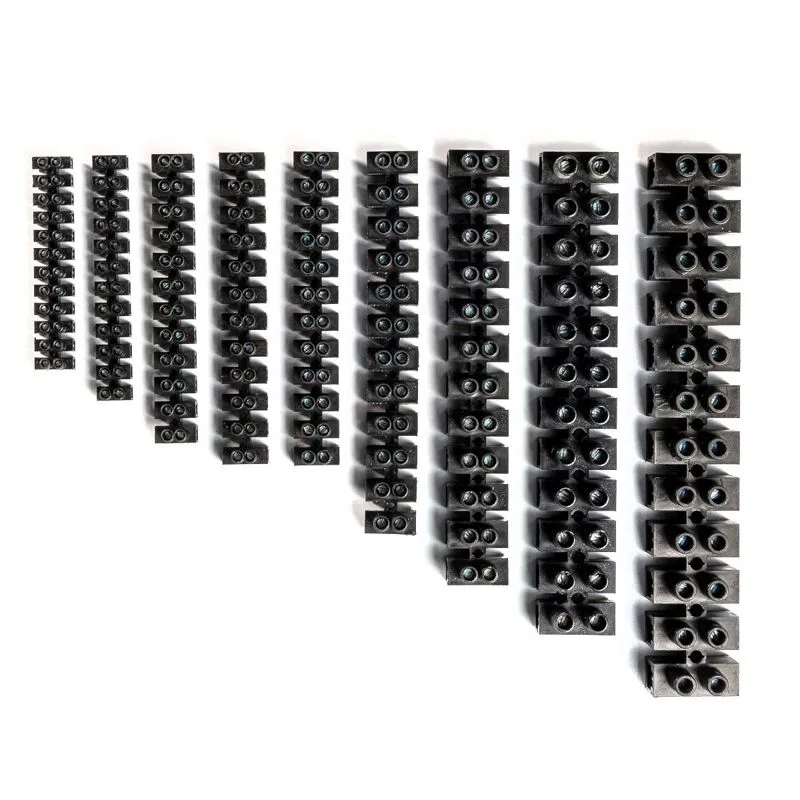

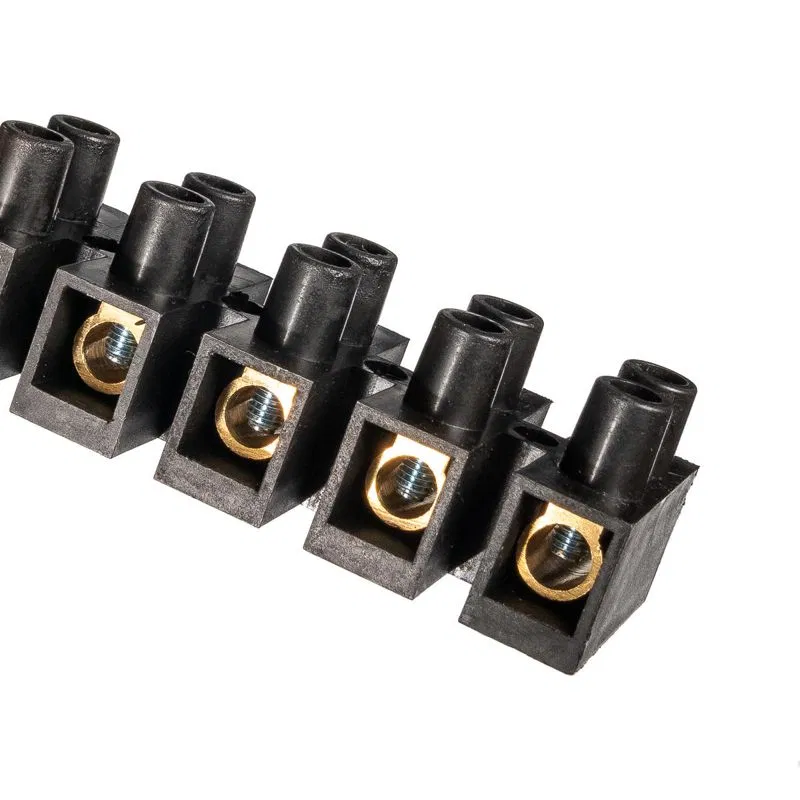

• Designed for connecting multi-strand cables and wires using screw fixation
• Insulated screw terminals allow for the installation of both copper and aluminum cables with solid or stranded cores
• Operating voltage: up to 400 V
• Housing material: polypropylene, flame retardant
• Connector material: brass grade LS58-2
• Screw material: steel
• No special tools required for installation
Version tested for explosion protection "Ex e"
No
Number of terminals per pole
1
Number of poles
1
Housing insulation material
Polypropylene (PP)
Rated voltage
400 В
Rated current In
100 А
Operating temperature
65 град.C
Operating temperature from
-40 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
6 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
6 кв.мм
Mounting method
Direct mounting
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
Black
