КВТ
Insulated screw terminal block ZVIng-3A (0.5-2.5mm2) (white) 87169 KVT
SKU: 87169
ETIM: EC001284
Price on request
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse

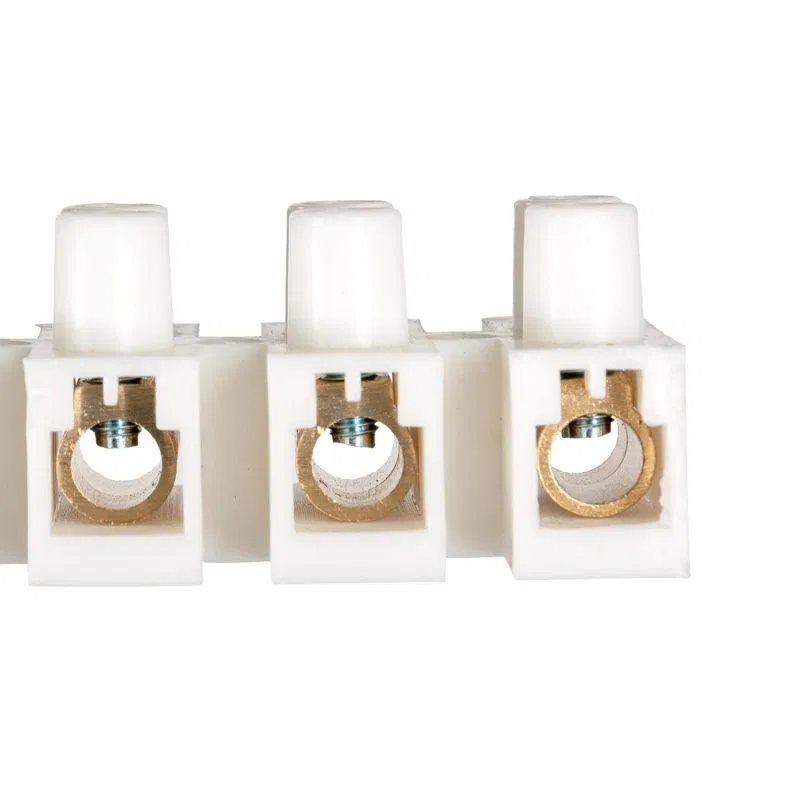

• Designed for connecting multi-strand cables and wires using screw fixation
• Insulated screw terminals allow for the installation of both copper and aluminum cables with solid or stranded cores
• Operating voltage: up to 400 V
• Housing material: polypropylene, flame retardant
• Connector material: brass grade LS58-2
• Screw material: steel
• No special tools required for installation
Version tested for explosion protection "Ex e"
No
Height
14.5 мм
Length
63 мм
Number of terminals per pole
1
Number of poles
1
Housing insulation material
Polypropylene (PP)
Rated voltage
400 В
Rated current In
3 А
Operating temperature
65 град.C
Operating temperature from
-40 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
.5 кв.мм
Solid conductor cross-section to
2.5 кв.мм
Solid conductor cross-section from
.5 кв.мм
Mounting method
Direct mounting
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
White
Color
White
Width
156 мм
