IEK

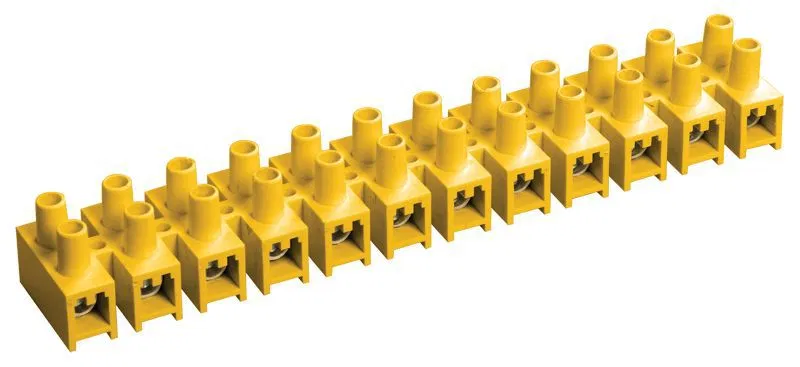

Screw contact clamp ZVI-100 n/g 10-25mm2 12pairs yellow IEK UZV7-100-25
SKU: UZV7-100-25
ETIM: EC001284
11,220 ₽
Get back 112 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
The clamp is designed for screw connection of conductors, protecting the wire from damage and eliminating the possibility of a short circuit to the electrical installation enclosure. The insulation frame is made of white non-flammable polystyrene.
Height
28 мм
Height
28 мм
Length
218 мм
Length
218 мм
Permissible continuous current
100
Climatic version
UKhL3.1
Number of terminals per pole
2
Number of poles
12
Max. operational voltage Ue
400
Clamping bracket material
Brass
Housing insulation material
Polystyrene
Housing material
Polystyrene
Housing material
Polystyrene
Tightening torque Nm at conductor cross-section
2.5
Rated voltage
400 В
Rated insulation voltage Ui
450 В
Rated current In
100 А
Transparent
No
Operating temperature
110 град.C
Operating temperature from
-25...110 град.C
Connection position
Side (transverse)
Flame propagating
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
10...25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
10...25 кв.мм
Mounting method
Direct mounting
IP protection rating
IP00
Product/component type
ZVI terminal block
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
Yellow
Colour
Yellow
Width
36 мм
Width/connection pitch
26.0 мм
