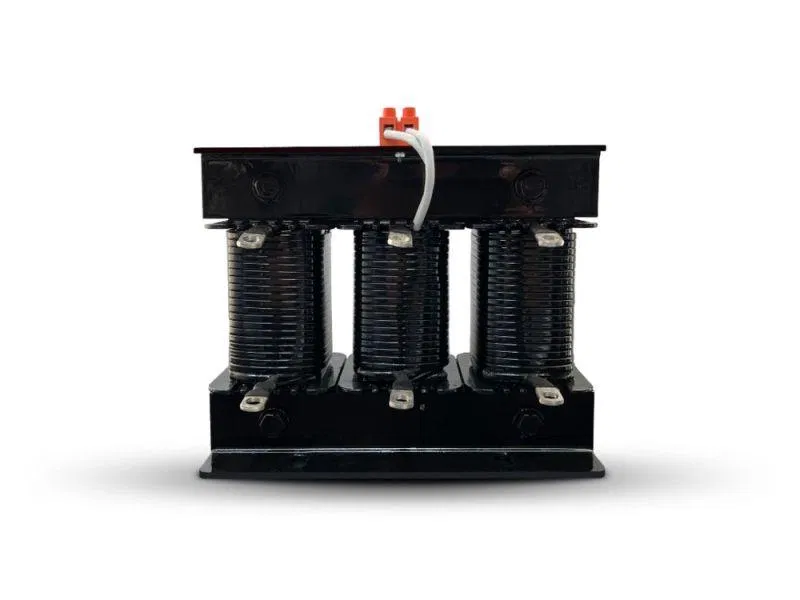

Anti-resonance choke for 400V 50kVAR stages, detuning factor 7% SE SDR075003P480 Systeme Electric
SKU: SDR075003P480
ETIM: EC002565
194,590 ₽
Get back 1,945 ₽ in points
Analogues by specifications
Stock by warehouse
Anti-resonance choke of the Systeme Electric brand, SystemeSet series, type DR, is designed for use in capacitor banks to protect capacitors from elevated harmonic levels. The choke consists of a steel core, an insulated copper coil, mounting plates, and a temperature sensor. Rated voltage 400V; rated power 50 kVAR; detuning factor 7%; insulation class H; protection degree IP00 (formerly Schneider Electric Components for UKRM NN LVR07500A40T assembly).
Filtration coefficient
7 %
Maximum rated operating voltage Ue
400 В
Maximum operating current (Ith) at AC operating voltage
89.57 А
Coil power
50 кВАр
Rated operating frequency up to
50 Гц
Rated operating frequency from
50 Гц
Rated AC current up to
72.25 А
Rated AC current from
72.25 А
Electrical filter resonant frequency
190 кГц
IP protection rating
IP00
Number of primary side poles
3
