IEK
SKU: AF-CT23-07-22-K03-002
ETIM: EC000903
17,247 ₽
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse

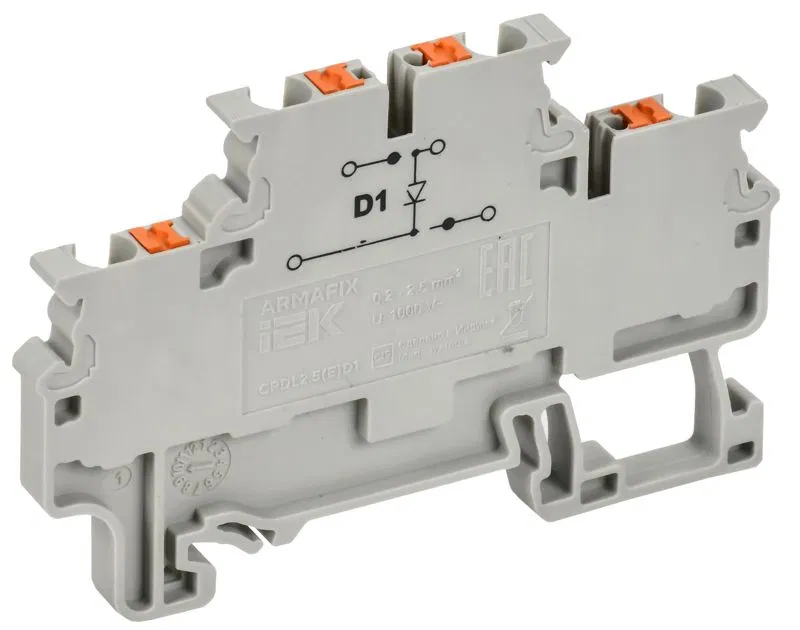

Terminal blocks with built-in diodes are designed for operation in AC and DC circuits. The built-in diode in the terminal design is connected to an inductive load, such as relay coils, electromagnetic valves, or contactor coils, to eliminate or suppress sudden voltage spikes occurring in the load when the supply voltage is disconnected. The terminals are equipped with a built-in 1N4007/1N5408 type diode for reverse polarity protection, which also provides unidirectional current.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
49.5 мм
Length
72.7 мм
Number of terminals per level
2
Number of levels
2
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
1 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40…85 град.C
Connection position
Top
Flexible stranded conductor cross-section up to
2.5 кв.мм
Solid conductor cross-section to
4 кв.мм
Mounting method
DIN rail (standard) 35 mm
Component type
Diode
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Grey
Width/connection pitch
5 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
345 ₽
IEK ARMAFIX Terminal block CPDL2.5(E)D2 2-level with built-in diode IEK AF-CT23-07-22-K03-012
SKU: AF-CT23-07-22-K03-012
200 ₽
DKC Terminal with built-in diode, cathode on the left, push-in clamp, 4 connection points, 2.5 sq.mm, grey VPR-2.5-QT-D-RL DKC
SKU: VPR-2.5-QT-D-RL
846 ₽
СТЭЗ Terminal block KNZ 2.5-2U-2D/V-NL/NP-NL STEZ 10200076
SKU: 10200076
602 ₽

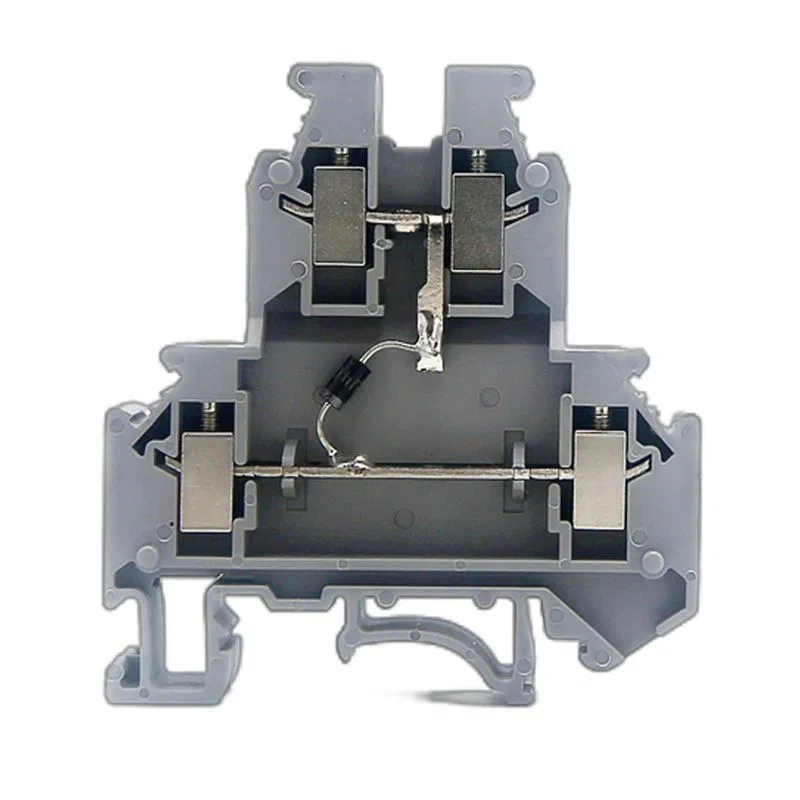

DKC Terminal block with built-in diode, two-level, two diodes: one between the upper and lower levels, the second between the lower level terminals, the cathode of both diodes is connected to the bottom left terminal, screw clamp, 4 connection points, 4 mm², grey GUR-D-D DKC
