IEK

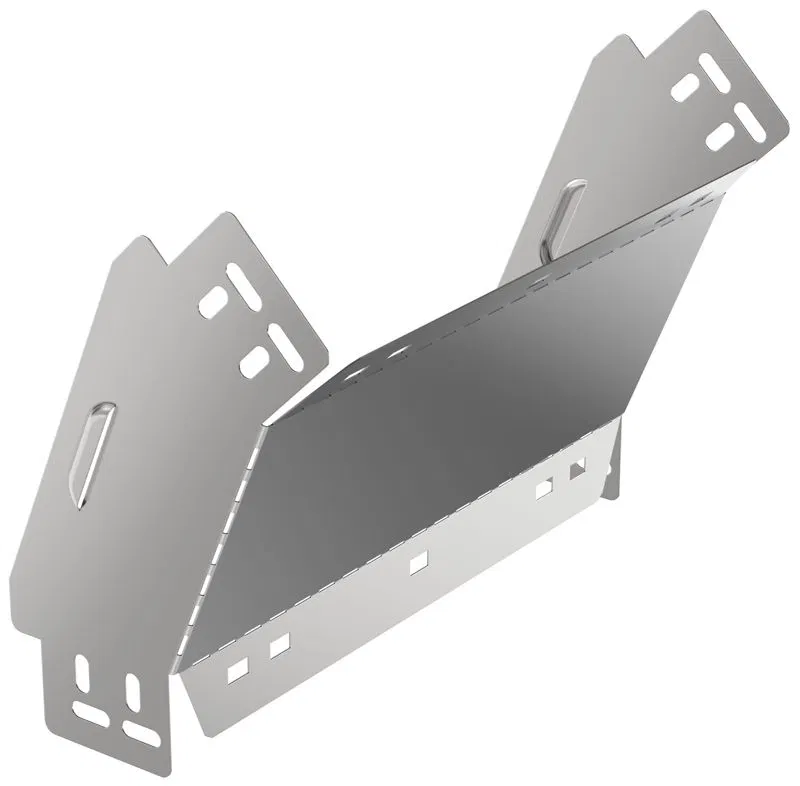

ESCA 3 Vertical external bend 45deg 80x300-0,6 IEK ES3-PV-45-080-300-06
SKU: ES3-PV-45-080-300-06
ETIM: EC002400
10,100 ₽
Get back 101 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
45° vertical external bend is designed for organizing cable route rotation in a vertical plane.
Accessory is supplied flat, featuring guide perforation for bending and assembly before installation.
Connection of the accessory to the tray is made via a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory is ordered separately.
Accessory is made of Sendzimir galvanized steel (zinc protective layer not less than 5-10 μm).
Weight
0.42 kg
Material type/grade
Other
Height
80 mm
Height
80 mm
Cable tray height
80 mm
Length
230 mm
Length
230 mm
Protective surface coating
Sendzimir galvanizing
Direction change
Vertically descending (external)
Corrosion resistance class
2
Climatic version
U2, HL2, UHL2, OM2
Material
Steel
Mounting perforation in base
No
Mounting temperature from
-50...40 °C
RAL colour number
7047
Perforated side wall
No
Rotation (angle)
45
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 °C
Metal thickness
0.6
Zinc coating thickness
10
Color
Light grey
Colour
Light grey
Width
300 mm
Cable tray width
300 mm
Branch width
300 mm
Wide-range version
No
