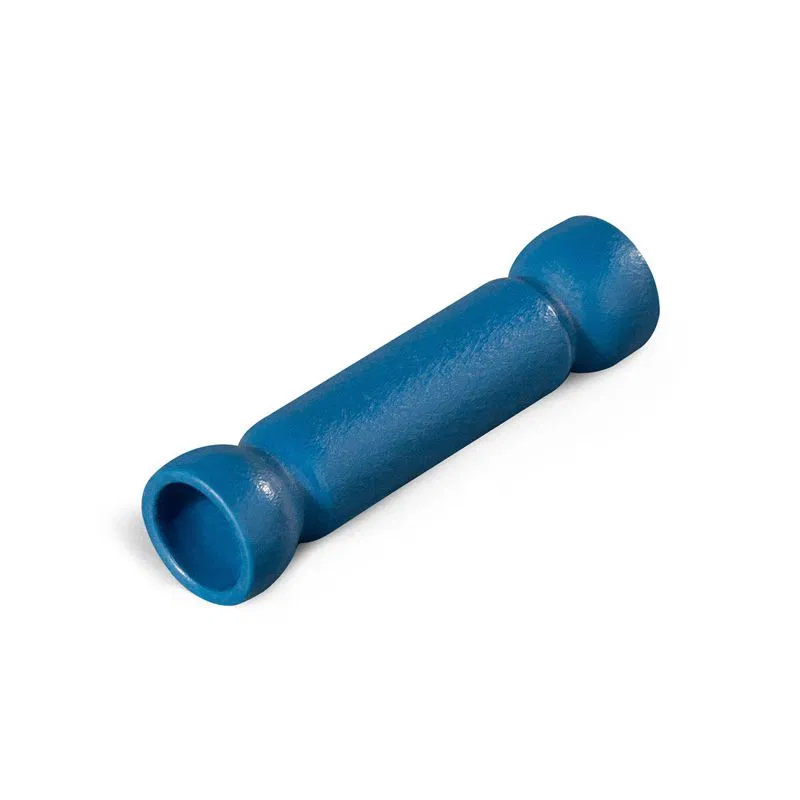

Insulated connection sleeve GSI 10 series PROFI 61785 KVT

• Designed for butt-joining multi-strand copper wires by crimping • Insulation material: self-extinguishing PVC. UL94 Class V-0 • Insulation temperature resistance: 75 °C • Sleeve material: M1 grade copper • Sleeve coating: electrolytic tinning • Maximum voltage: 690 V • Design features: • A center-located stop notch on the sleeve determines the wire insertion depth into the connector • Chamfers removed at the edges of the sleeve facilitate wire insertion • Expanded multi-size crimping ranges • Within the specified range, it is possible to connect wires of different cross-sections in a single line or to install a branch • Crimping over the insulating sheath
