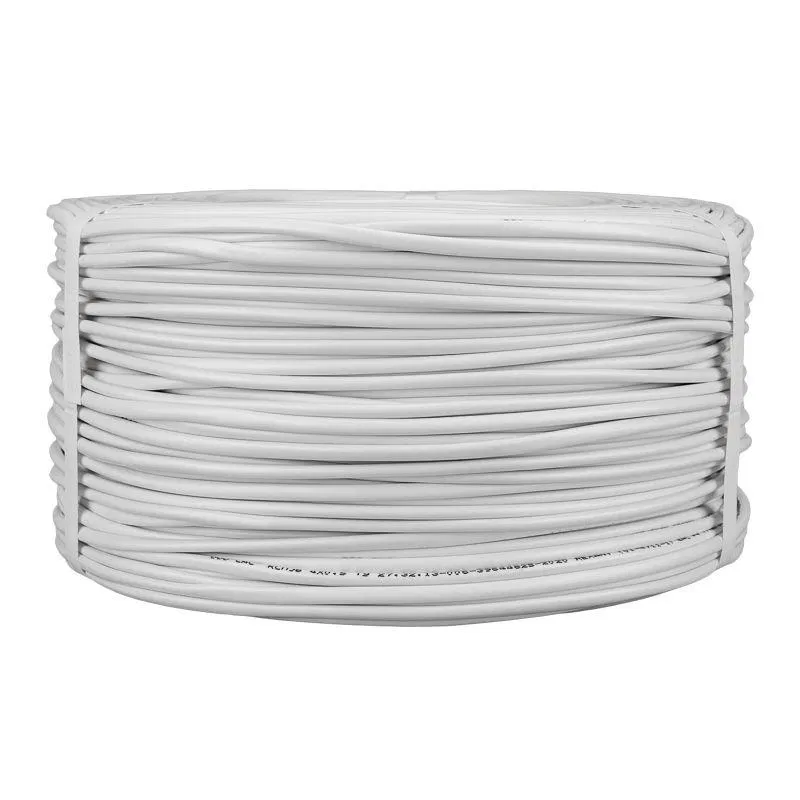

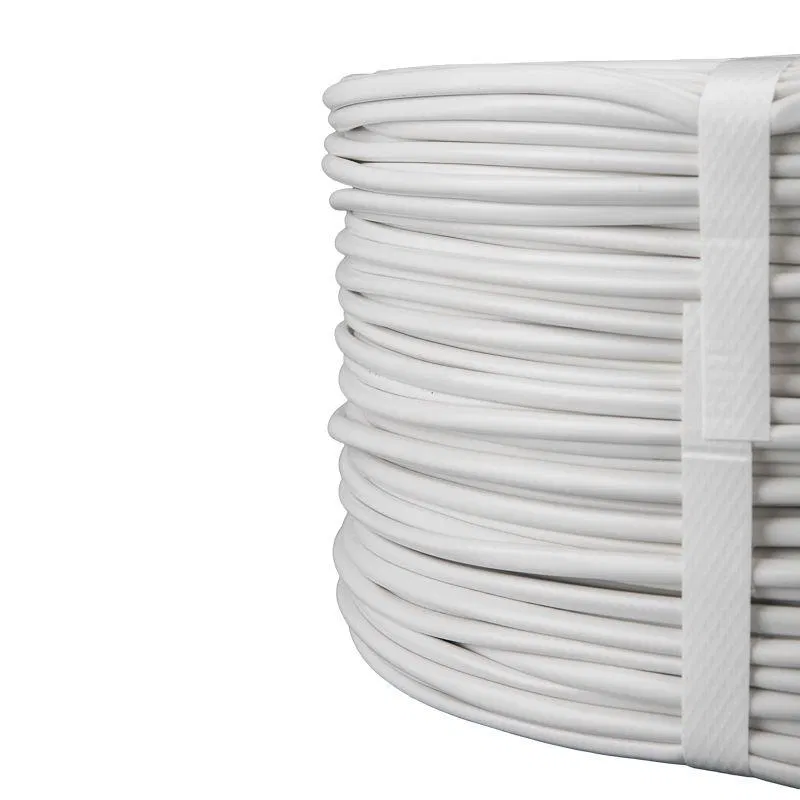

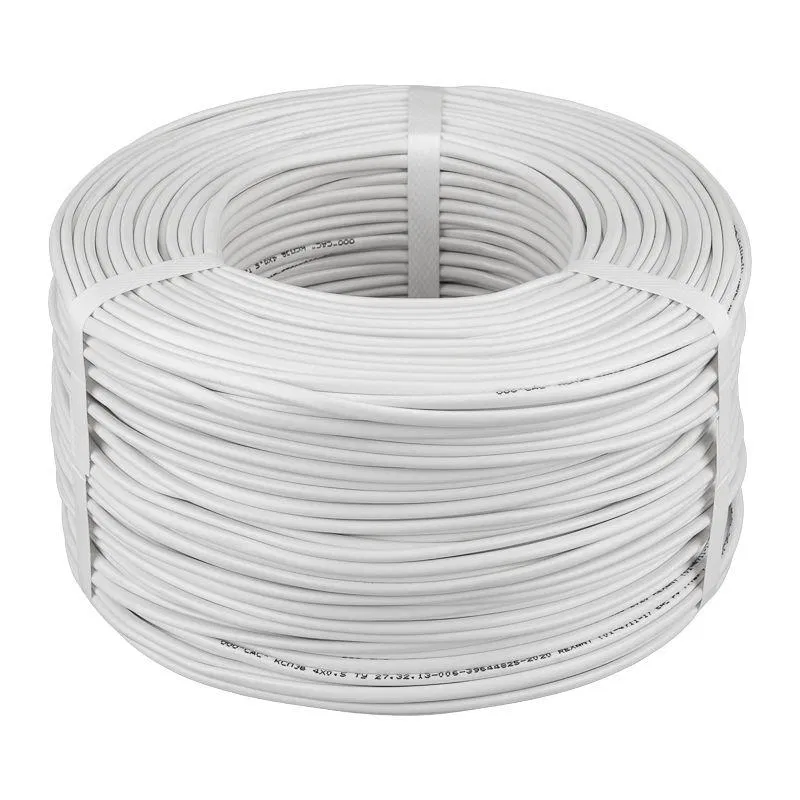

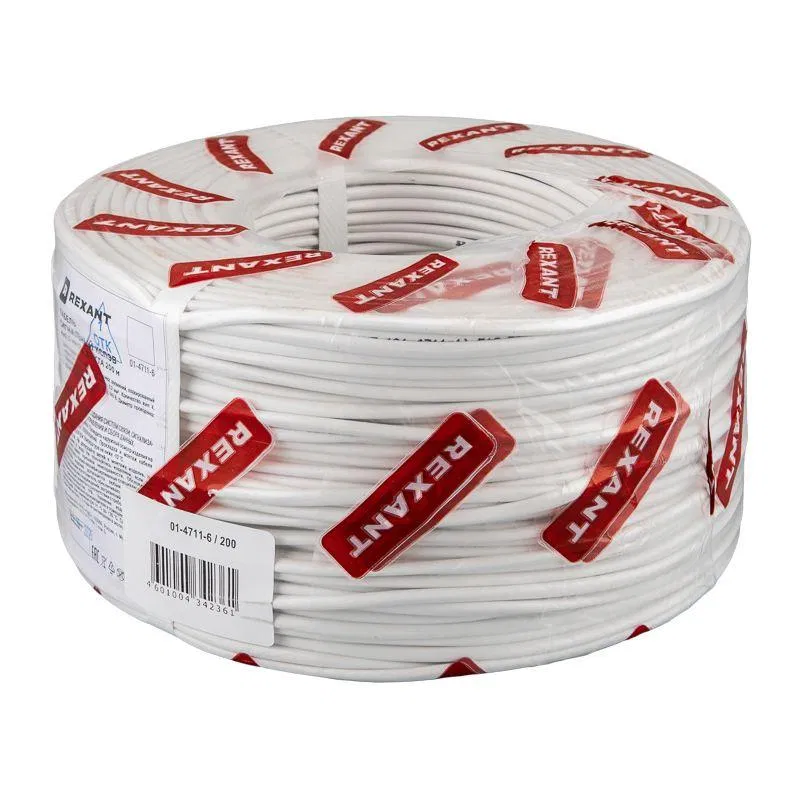

KSPÉV 4x0.5 CCA (coil) (m) Rexant 01-4711-6

The cable is used for creating communication, signaling, telecommunication, control, and data acquisition systems. It is intended for single stationary and non-stationary installation in conduits, tunnels, buildings, and premises in the absence of mechanical impact on the cable. It is operated at a voltage of up to 145 V AC in the frequency range up to 50 Hz or 200 V DC. The cable is manufactured according to TU 27.32.13-006-39644825-2020 and meets safety requirements in accordance with GOST 31565-2012. 4 single-wire current-carrying conductors with a diameter of 0.5 mm are made of copper-clad aluminum (CCA) and insulated with high-pressure polyethylene. Thanks to 100% annealing of the copper strands, the cable becomes softer, which simplifies the installation process and increases service life. A polyvinyl chloride plastic sheath is applied over the conductors.
