VA47-60M switches perform the functions of automatic disconnection of the electrical installation in case of overcurrent and operational control of sections of electrical circuits.

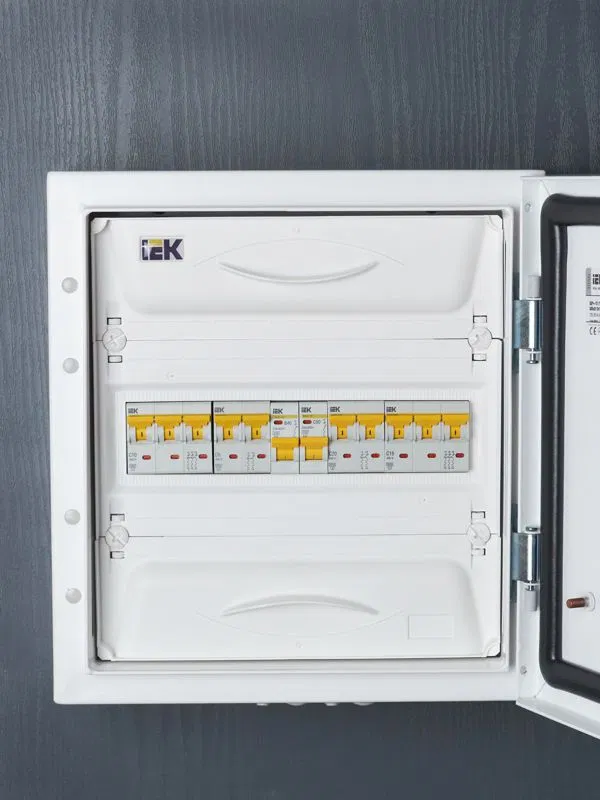

These devices are perfectly suited for use in group panels (apartment and floor), as well as in metering and distribution boards of administrative and residential buildings.
Weight per pole
≤ 0.2
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Release response time in short-circuit range tm
0.1
Mounting installation depth
71 мм
Electric shock protection class
0
Current limiting class
3
Climatic version
UKhL4
Number of protected poles
2
Number of poles
2
Number of power poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
≥ 20000
Explosion protection present
Without explosion protection
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
6.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
6.0 кА
Rated breaking capacity in accordance with EN 60898
6 кА
Rated voltage
400 В
Rated current
20.0 А
Total number of poles
2
Power loss
9.0 Вт
Current type
AC/DC
Tripping system
Thermal, electromagnetic

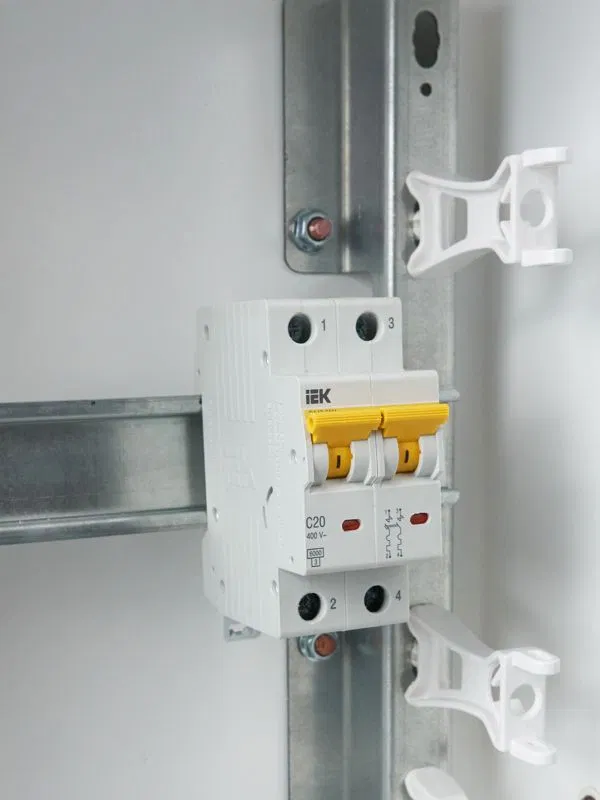

Mounting method
On DIN rail
IP protection rating
IP20
Application area
Industrial and domestic
Mounting rail type
35x7.5
Connection type
Screw connection
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
2
Electrical endurance
≥ 8000
