1,830 ₽
Get back 18 ₽ in points

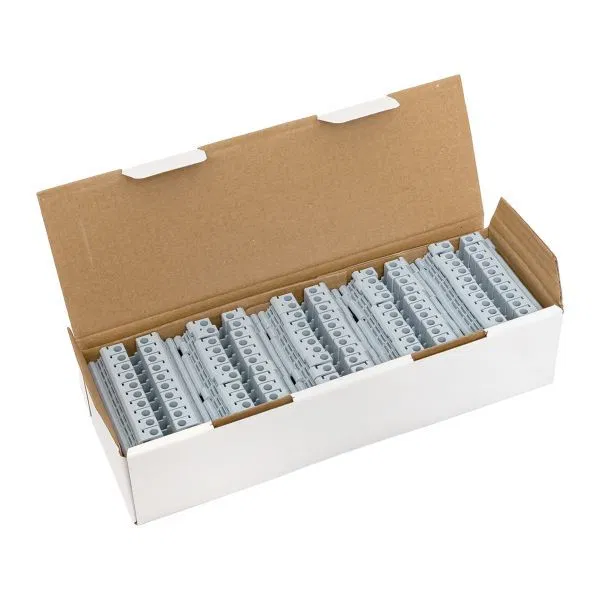

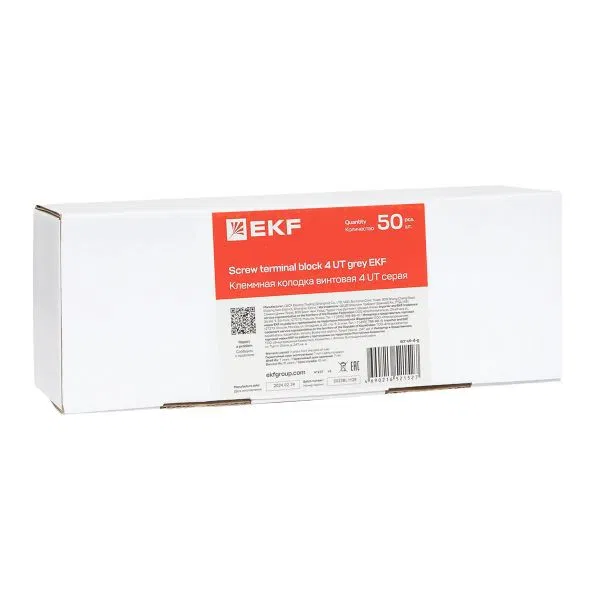

Order multiple: 50 шт
Analogues by specifications
Stock by warehouse

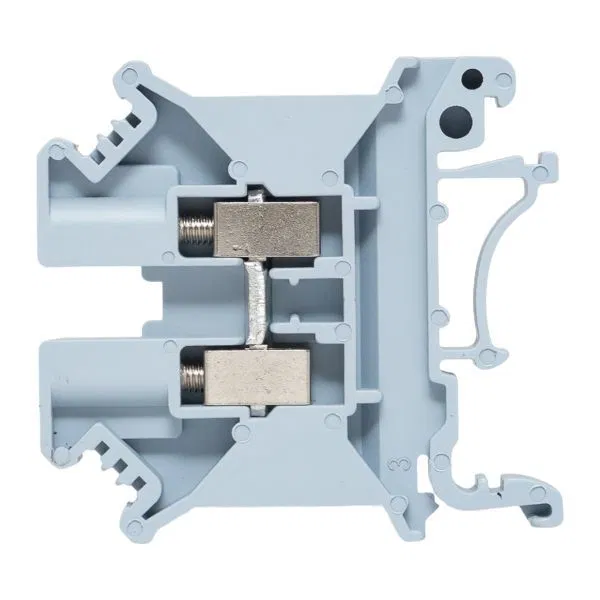

Screw terminal blocks are installed on a DIN rail in electrical panels and industrial equipment for reliable and convenient connection of conductors of various cross-sections and purposes. The conductor is clamped by a screw. They are designed for use in AC electrical circuits with a voltage of up to 800V and a frequency of 50Hz. Made of non-drying and non-cracking fire-resistant colored polyamide. Screw terminal blocks are used to create a convenient load distribution system, neat installation, and ease of further operation of electrical systems.
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Length
42 мм
Length
42 мм
Insulated
Yes
Flammability class of insulation material in accordance with UL57
Other
Number of terminals per level
2
Number of poles
1
Number of levels
1
Number of bridged terminals
2
Marking
No (without)
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Rated current In
41 А
Closing plate can be fitted if required
Yes
Operating temperature
75 град.C
Operating temperature from
-40...75 град.C
Connection position
Side
Core cross-section
4 кв.мм
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
0.2...4 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.2...6 кв.мм

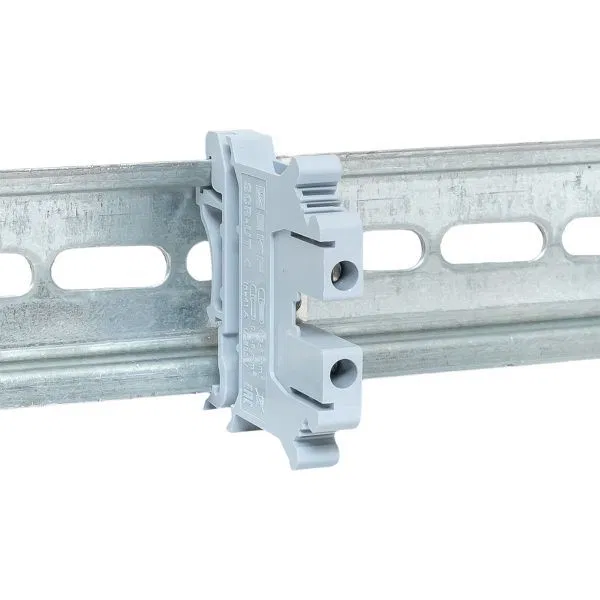

Mounting method
DIN rail (O-profile) 35 mm
Electrical connection type 1
Screw connection
Colour
Grey
Color
Grey
Width/connection pitch
6 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
Price on request
Phoenix Contact Terminal block potential blocks PTU 16/14x2.5 BU Phoenix Contact 3214014
SKU: 3214014
43 ₽
IEK ARMAFIX Spring terminal CX2.5-1B 2,5mm2 disconnectable (1 clamp 1 connector) gray IEK AF-CT40-06-11-K03-002
SKU: AF-CT40-06-11-K03-002
1938 ₽

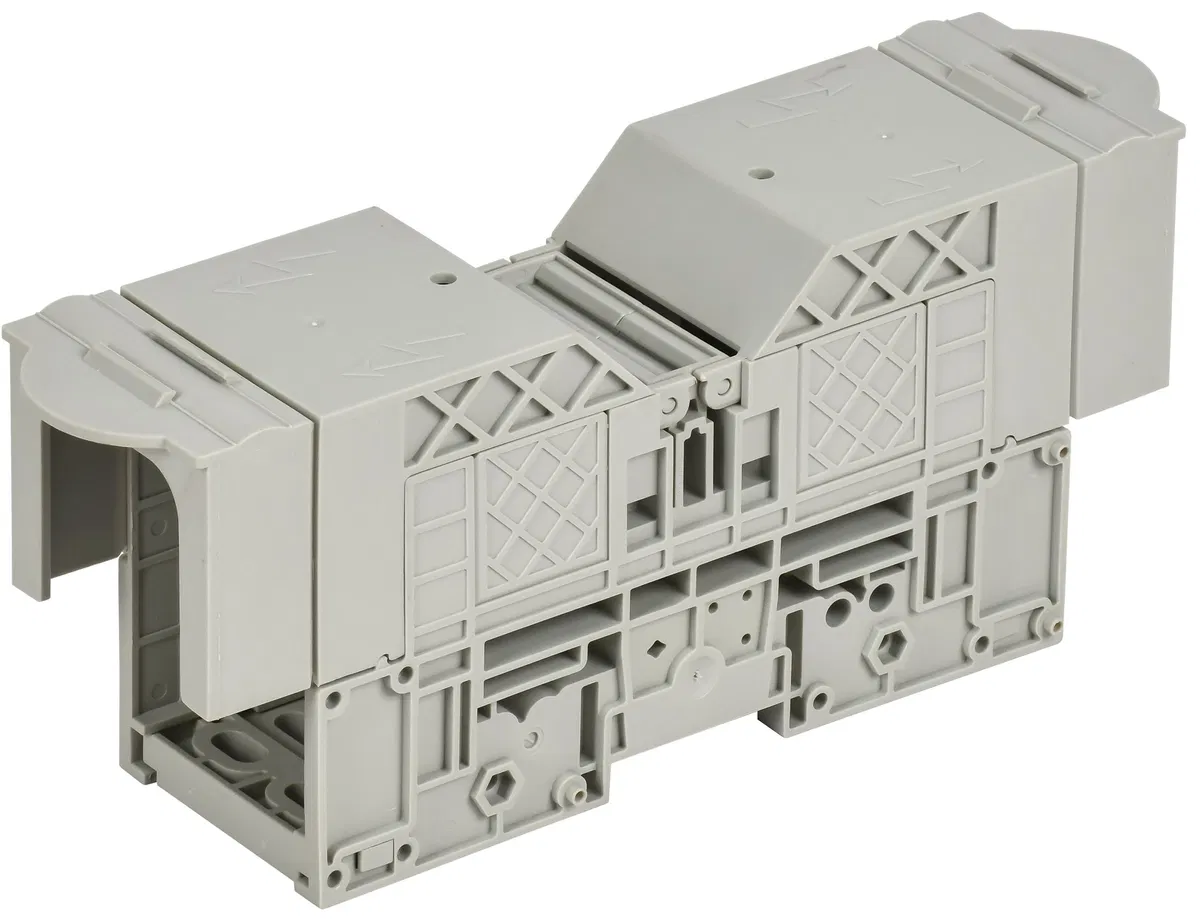

IEK ARMAFIX Bolt terminal block 6-150 mm2/310A with protective cover PTB120/150SH IEK AF-CT50-08-K03-150
