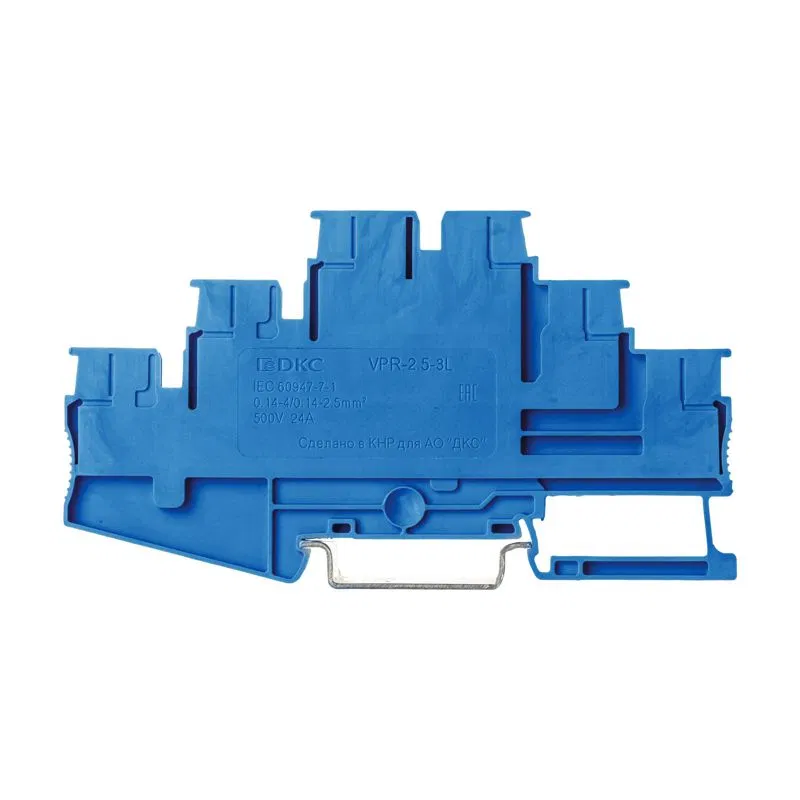

Three-level terminal, push-in clamp, 6 connection points with jumper between levels, 2.5 sq.mm, blue VPR-2.5-3L-PV-BU DKC

SKU: VPR-2.5-3L-PV-BU ETIM: EC000897

602 ₽

Get back 6 ₽ in points

Stock by warehouse

Manufacturer warehouse August 28 · Delivery to Smolensk Oblast on September 4 4150 шт On order

Description Specifications Reviews

Version tested for explosion protection "Ex e" No

Internally linked levels Yes

Minimum possible mounting height 58.1 мм

Length 103 мм

Flammability class of insulation material in accordance with UL57 V0

Number of terminals per level 2

Number of poles 6

Number of levels 3

Housing insulation material Thermoplastic

Rated voltage 500 В

Rated current In 24 А

Closing plate can be fitted if required Yes

Operating temperature 105 град.C

Operating temperature from -40 град.C

Connection position Top

Core cross-section 2.5 кв.мм

Stranded wire cross-section with ferrule 0.14...2.5 мм²

Flexible stranded conductor cross-section up to 2.5 кв.мм

Stranded flexible conductor cross-section from Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм

Solid conductor cross-section to 4 кв.мм

Solid conductor cross-section from Please provide the text you would like me to translate. You only provided ".14", which does not contain meaningful text for translation. кв.мм

Extra-fine-stranded flexible conductor cross-section without ferrule, from 0.14...2.5 кв.мм

Mounting method DIN rail 35 mm

Electrical connection type 1 Spring clamp connection

Electrical connection type 2 Spring clamp connection

Colour Blue

Color Blue

Width/connection pitch 5.2 мм
