iMLamp4D_AC_7000 Controller for Belt-Light and LED lamps 220V 7000W 4 channels x 8.0A 33 programs Remote Control IP65 Impuls Light 332-119 SVTA other

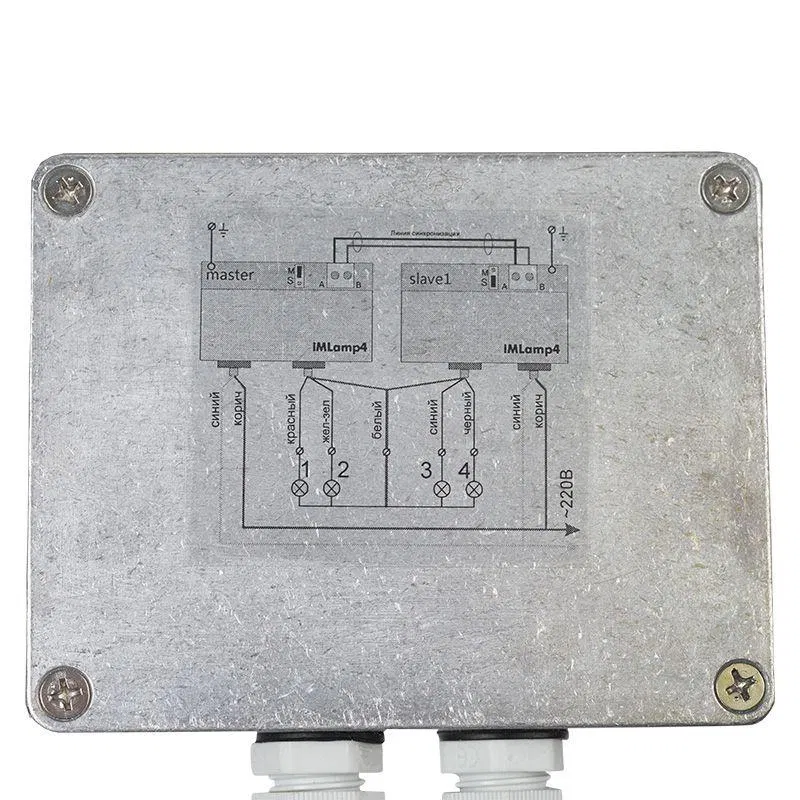

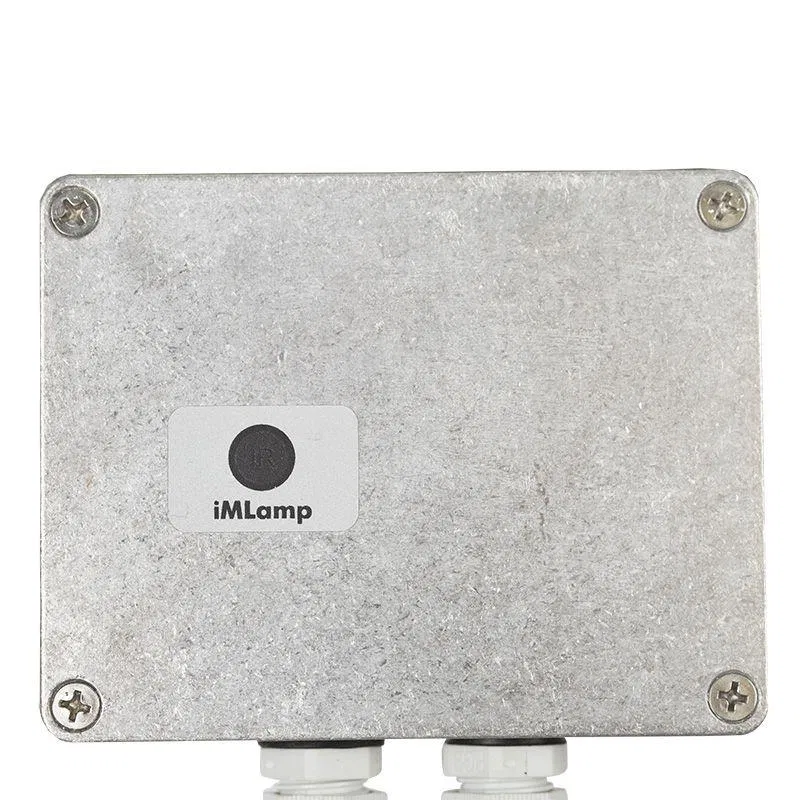

Model iMLamp4D_AC_7000 with discrete brightness adjustment for working with Belt-Light on LED lamps or inductive load. The controllers use special microprocessor firmware that allows LED lamps to operate in accordance with the service life declared by the manufacturer. The controller is made in an aluminum moisture-proof housing with mounting flanges and an additional radiator. The controller is controlled via a radio remote control. The maximum signal reception distance from the remote to the sensor is 10 m line-of-sight. The device uses optoelectronic isolation, i.e., the power and load circuits are galvanically isolated, which significantly increases the product's resistance to external interference. Designed for outdoor use. In case of failure of the main channels, there is an option to switch to 4 backup channels. LOAD AC load at 220 V (Belt-Light, duralight, LED-neon, incandescent lamps, electromagnetic transformers). The total maximum current across all channels cannot exceed 32 A. When using a symmetrical load (Belt-Light cord or duralight), the current per channel is 8 A. With an asymmetrical load, the current per channel must not exceed 9 A. PROGRAMS The product has a set of preset programs operating in automatic mode. With the remote control, you can adjust the program execution speed, exclude a program, or perform a factory reset. Supply voltage: 220 V Power: 7000 W Number of channels: 4 Current per channel: 8 A Number of programs: 33 Number of brightness levels: 128 Scenario upload: USB mini port Program step time: 20 ms…2 min Operating temperature: -40…+40 °C Protection degree: IP65 Size: 295x150x62 mm Weight: 1.6 kg
