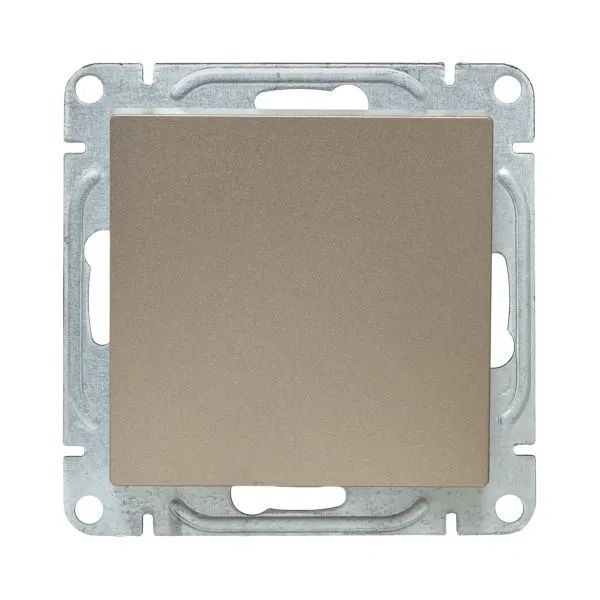

Switch mechanism, single-button, two-way, champagne Epika EKF UP1-SWC-11
SKU: UP1-SWC-11
ETIM: EC001590
194 ₽
Get back 1 ₽ in points
Analogues by specifications
Stock by warehouse
Single-gang two-way switch EKF Epika collection - a reliable and stylish solution for lighting control.
Made of durable plastic resistant to UV radiation, ensuring material longevity.

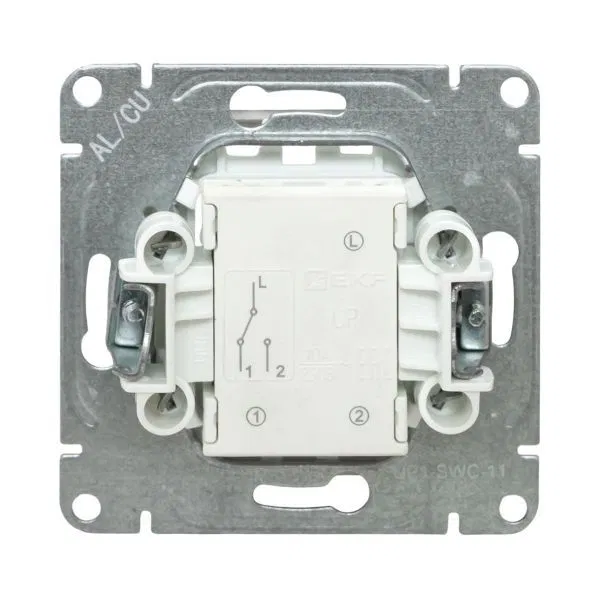

The product is compatible with copper and aluminum cables and features screw terminals. The screws have the same slot type, so bit replacement is not required during installation.
To create a harmonious interior design, it is recommended to use it with a frame from the same collection.
Material type/grade
Thermoplastic
Spring-return push
No
Washing machine switch
No
Device height
71 мм
Mounting installation depth
23 мм
Device depth
40 мм
Protective surface coating
Untreated
Number of actuator buttons
1
Switched fluorescent lamp current
10 AX
Material
Plastic
Minimum depth of recessed mounting box
42 мм
Cable trunking installation
No
Halogen-free
Yes
Rated voltage
230 В
Rated current
10 А
Backlight
No
Suitable for ingress protection IP
IP20
Status signalling contact
No
Mounting method
Internal / concealed
Connection method
Screw clamp/terminal
Switching/control type
Rocker/Button
Configuration type
Mechanism with cover plate
Fastening type
By expansion (tabs) and screws
Surface type
Matte
Connection diagram type
2-way switch
Color
Champagne
Device width
71 мм
