EKF

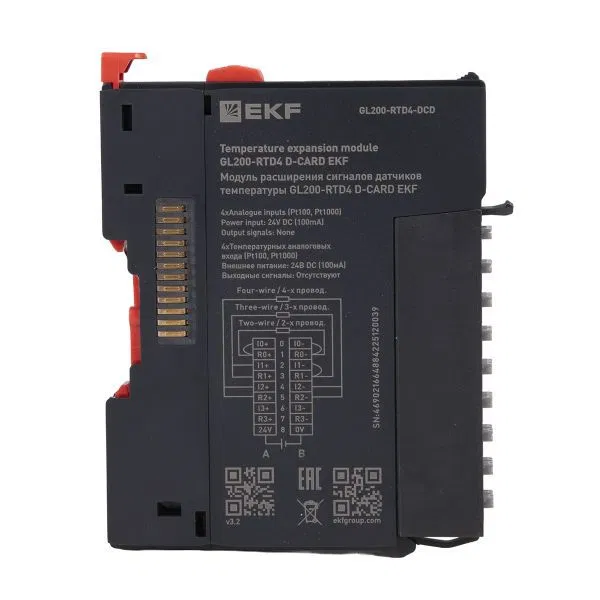

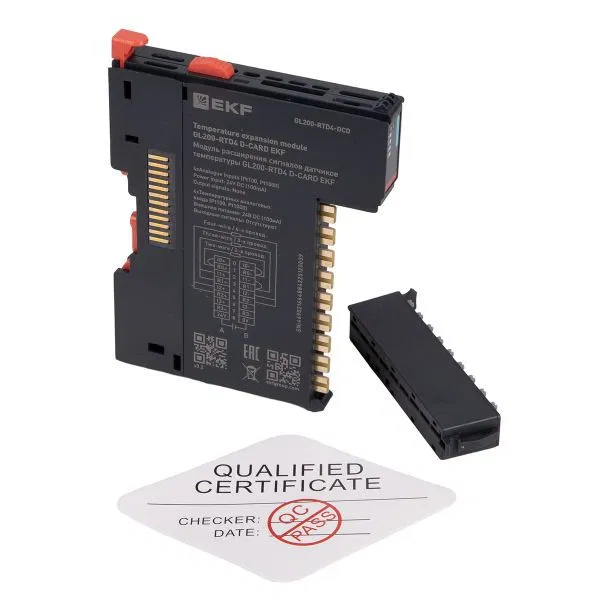

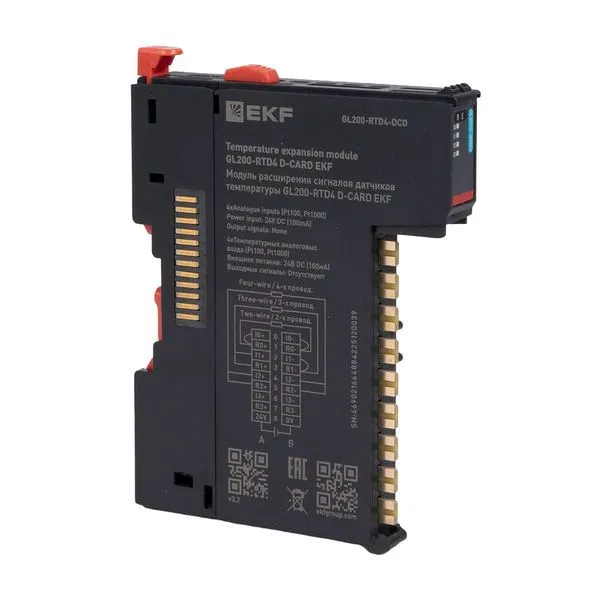

Temperature sensor signal expansion module GL200-RTD4 D-CARD EKF GL200-RTD4-DCD
SKU: GL200-RTD4-DCD
ETIM: EC001420
24,721 ₽
Get back 247 ₽ in points
Analogues by specifications
Stock by warehouse
GL200 D-CARD local expansion modules are devices that allow increasing the number of available input and output points for D-CARD PLCs and GR200 D-CARD remote I/O stations. The product range includes a wide variety of expansion modules, including a 16-channel digital input module (source + sink), 8/16-channel digital output module (source/sink); 4/8-channel analog input module (voltage + current), 4/8-channel analog output module (voltage/current), with 16-bit resolution; temperature measurement module (RTD/thermocouple) with 24-bit resolution. A compact, convenient module is the future trend in automation. All modules support hot-swapping.
SIL in accordance with IEC 61508
2
Analogue input 0-1 V
No
Analogue input 0-10 V
No
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
No
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
No
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
No
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Weight
0.073 кг
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Input channel scan time
100 мс
Resistance input
No
Resistance thermometer input
Yes
Thermocouple input
No
Input voltage
No
Input current
No
Height
105 мм
Galvanic isolation
Yes
Depth
85 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Accuracy class
0.3 %
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW serial RS-485 interfaces
0
Number of analog inputs
4 шт.
Number of analogue outputs
0 шт.
Number of 0(4)-20 mA analogue outputs
0
Number of 0-10V analog outputs
0
Configurable analogue inputs
Yes
Configurable input signal
Yes
Maximum power consumption
2.4 Вт
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
No
TCP/IP protocol support
No
OWEN protocol support
No
Suitable for security systems
Yes
Operating temperature
55 град.C
Operating temperature from
-20...55 град.C
Analogue input separation
24 бит
Supply voltage current type
DC (direct)
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
No
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
No
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
Yes
Resistance thermometer Pt1000
Yes
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
No
Thermocouple type J
No
Thermocouple type K
No
Thermocouple type L
No
Thermocouple type n
No
Thermocouple type r
No
Thermocouple type S
No
Type T thermocouple
No
Memory type
Flash
Connection type
Spring clamp connection
Performance level per EN ISO 13849-1
Level c
Width
12 мм
