ONI (Группа IEK)

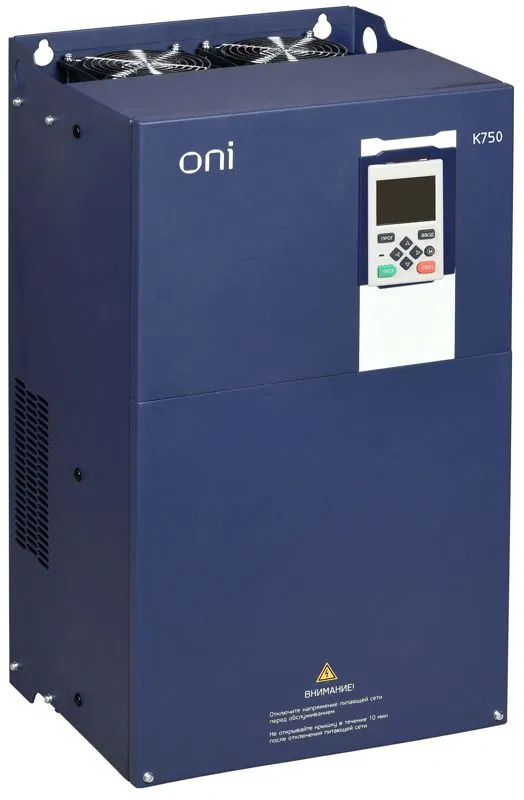

Frequency converter K750 380V 3Ph 75-90kW 150-176A with built-in brake and DC choke ONI K750-33-7590TRM
SKU: K750-33-7590TRM
ETIM: EC001857
646,401 ₽
Get back 6,464 ₽ in points
Analogues by specifications
Stock by warehouse
Frequency inverter for general industrial and heavy-duty applications with vector feedback, Modbus RTU/TCP support, and expansion boards (industrial protocols, I/O board, encoder/resolver). Suitable for most electric drives used in cement, paper, textile, food, printing and dyeing equipment, and plastic injection molding machines. Proven performance in oil and gas, chemical industries, metallurgy, mechanical engineering, and agriculture. Equipped with a Russian-language LCD display with a user-friendly menu and real-time clock. Due to a large number of built-in protections, the service life of the electric motor is significantly extended, and it is also capable of operating in fire mode.
Weight
40.9 кг
Input current HD constant load mode
157
Input current, ND variable load mode
170
Height
640 мм
Height
640 мм
Output power at rated output voltage
75.00 кВт
Output frequency
0...600
Output current, HD mode constant load
150.0
ND mode output current at variable load
176.0
Depth
290 мм
Mechanical design group
M2
Operating input voltage range
Please provide the full text or product data you would like me to translate. Currently, you have only provided a numerical range "323...483".
Permitted for use in industrial areas
Yes
Electric shock protection class
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Climatic version
UKhL3.1
Number of HW serial RS-485 interfaces
1
Number of input phases
3
Number of output phases
3
Number of phases
3
Max. motor power in HD constant load mode
75
Max. motor power in ND variable load mode
90
Maximum output power at linear load at rated output voltage
75 кВт
Maximum output frequency
600 Гц
Maximum output voltage
483 В
Maximum supply cable cross-section
50 кв.мм
Output voltage from
0...483 В
Mains voltage from
400 В
Carrier frequency
1...4
Rated output voltage
400 В
Rated output current
176.0 А
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
With control unit
Yes
With built-in braking resistors
Yes
With PC connection
Yes
IP protection rating
IP20
Operating temperature from
-10...40 град.C
Cooling type: air cooling, water cooling
Fan (built-in)
AC frequency converter type
Other
Mains frequency
50/60 Hz
Width
350 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
11394 ₽
CHINT Frequency converter NVF2G-1.5/PS4 1.5kW 380V 3ph type for fans and water pumps CHINT 639012
SKU: 639012
26383 ₽
VEDA Frequency Inverter VF-51-P1K5-0007-S2-E20-B-H Input 220V Output 1.5kW Output 7A VEDA ABA00003
SKU: ABA00003
343920 ₽

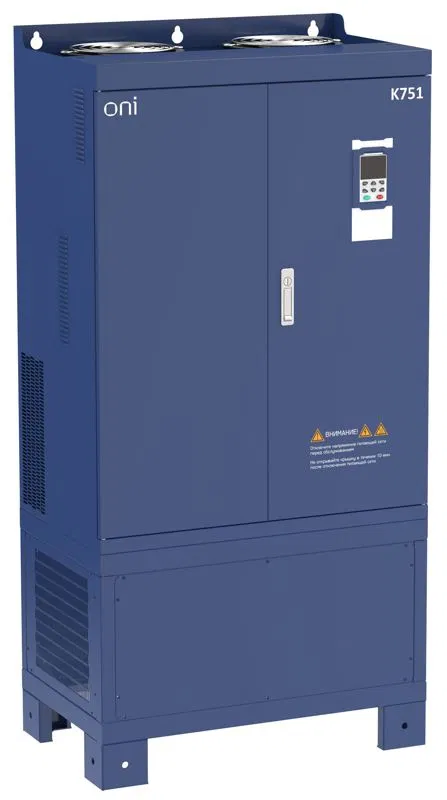

ONI (Группа IEK) Frequency inverter K751 380V 3ph 37-45kW 75-91A with DC choke ONI K751-33-3745RM
