Magnetic starter PML-1230-9A-230V with thermal relay 0.63-1A in IP65 enclosure, with Start/Stop buttons, with indication ctrp-r-9-230v-1A-led EKF
SKU: ctrp-r-9-230v-1A-led
ETIM: EC001037
6,605 ₽
Get back 66 ₽ in points
Analogues by specifications
Stock by warehouse
The EKF PROxima magnetic starter is a complete device consisting of a compact KMЭ contactor, an RTE thermal relay, an enclosure with cable glands, and control buttons. The starters are designed for remote starting by direct connection to the network and stopping of three-phase squirrel-cage induction motors with an AC voltage of up to 400 V, as well as for protecting electric motors from overloads of unacceptable duration and overcurrents caused by a phase failure. When using KMЭ 0910 – KMЭ 3210 contactors, a plastic enclosure is used; for KMЭ 4011 – KMЭ 9511 contactors, a metal enclosure is used.
External restart possible
Yes
Busbar mounting possible
No
Height
150 мм
Height
150 мм
Depth
140 мм
Overload protection device setting range to
1 А
Setting range of overload protection device from
0.63...1 А
Release class
Class 10
Coordination class per IEC 60947-4-3
Class 2
Number of auxiliary NO contacts
1
Number of auxiliary break contacts
0
Number of gangs
6
Maximum operating temperature
40 град.C
Rated power at AC-3, 400 V
4 кВт
Rated operational power at AC-3, 230 V, 3-phase
2.2 кВт
Rated control supply voltage Us AC at 50 Hz up to
253 В
Rated control supply voltage Us AC at 50 Hz from
184...253 В
Rated operational current Ie
1 А
Rated current
1 А
Rated conditional short-circuit current, type 2, 400 V
1 000 А
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
LON protocol support
No
MODBUS protocol support
No
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
Suitable for emergency shutdown
Yes
Switch-on current type
AC (alternating)
With short-circuit protection
No
With fuse
No
With transformer
No
Ingress protection (NEMA)
4X
IP protection rating
IP65
Thermal overload relay
No
Main electrical circuit connection type
Screw connection
Starter type
Direct-on-line starter
Type of electrical control circuit connection
Screw connection
Width
88 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
3755 ₽
КашинЗЭА Magnetic starter PM12-010200 UHL4 Cat. 110V 1NO with relay PTT5-10-1 0.32A Kashin 020200100BB110000510 KashinZEA
SKU: 020200100ВВ110000510
5738 ₽
КашинЗЭА Contactor PM12-010210 U2 Cat. 220V 1NO with relay RTT5-10-1 0.32A Kashin 020210101VV220000510 KashinZEA
SKU: 020210101ВВ220000510
4186 ₽

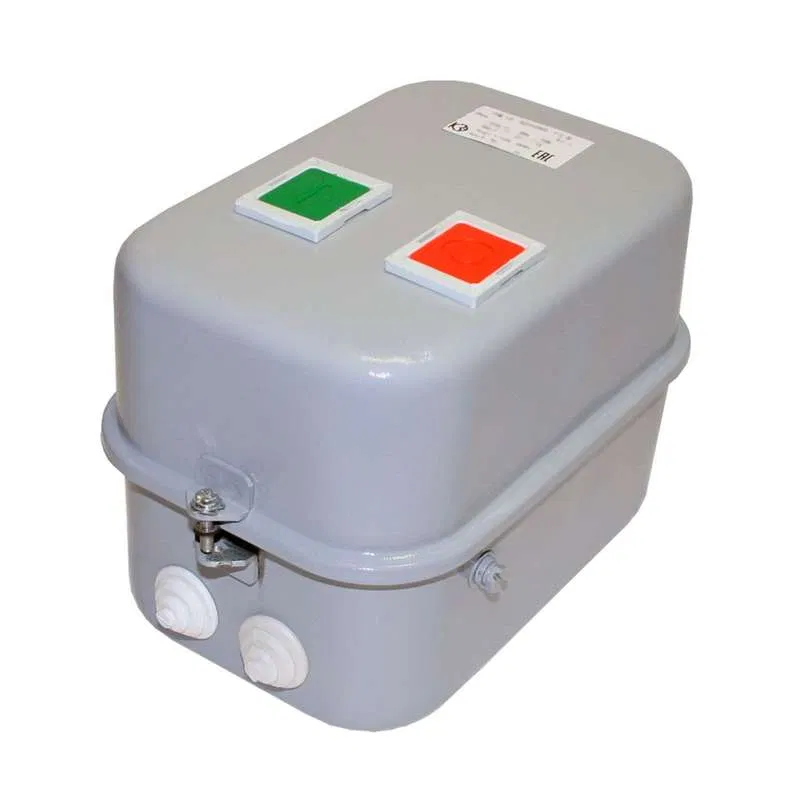

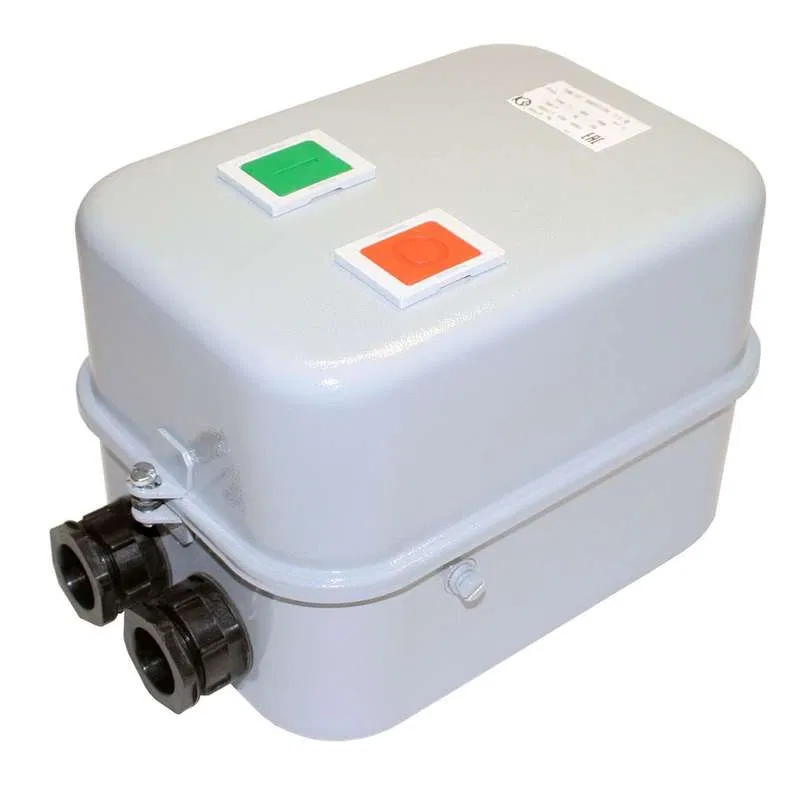

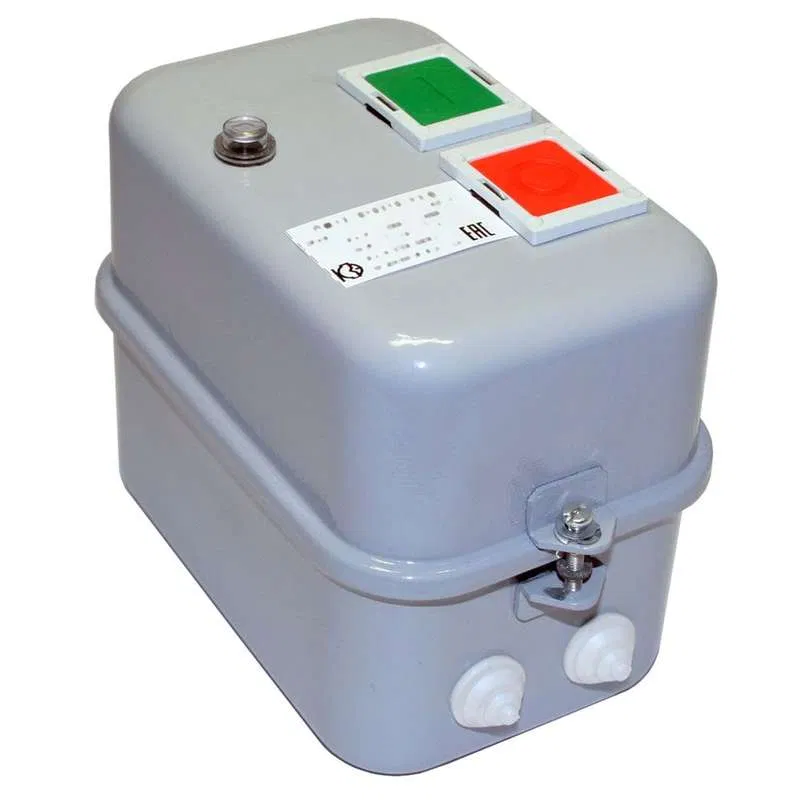

КашинЗЭА Magnetic starter PML-1200M UHL4 Cat. 220V 2NO+1NC with relay RTT5-10-1 8.50A Kashin O20200210VV220001910 KashinZEA
