Equipotential bonding bar is designed to connect all metallic current-carrying parts of the structure to the equipotential bonding system. The equipotential bonding bar is made of brass and has a plastic housing. It is possible to connect 1 flat conductor with a cross-section up to 30x4 mm, 1 round conductor with a diameter up to 8 mm, or up to 10 round conductors with a cross-section of 4–25 mm2.
Height
45 мм
Height
45 мм
Length
175 мм
Length
175 мм
Design
In the housing
Number of rigid conductor connections up to 16 mm2
10
Number of rigid conductor connections up to 25 mm2
7
Number of solid conductor connections up to 6 mm2
10
Number of round conductor connections up to 10 mm
10
Number of round conductor connections up to 8 mm
1
Number of round conductor connections up to 8-10 mm
10
Number of flat conductor connections up to 30 mm
1
Terminal material
Stainless steel (V2A)
Contact busbar material
Brass
Total number of round wire connections
10
Terminal surface
Galvanized/electrolytically galvanized
Busbar contact surface
Nickel-plated
With insulator
Yes
Design type
Fixed surface mounting
Width
50 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
3337 ₽
OBO Bettermann Equipotential bonding conductor 1804 (pk. 5pcs) OBO 5015553 OBO Bettermann
SKU: 5015553
586 ₽

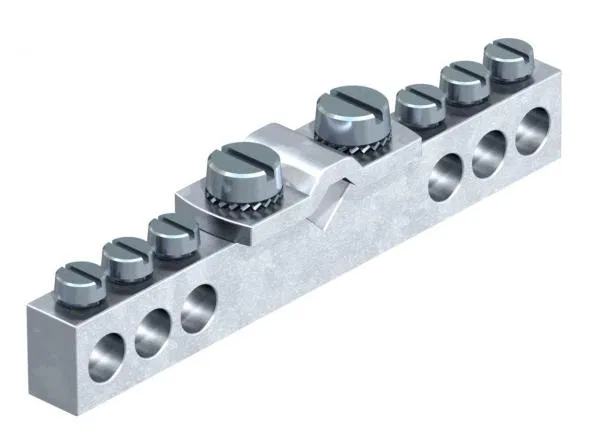

OBO Bettermann Equipotential bonding bar 1804 AP OBO 5015557 OBO Bettermann
