Varton

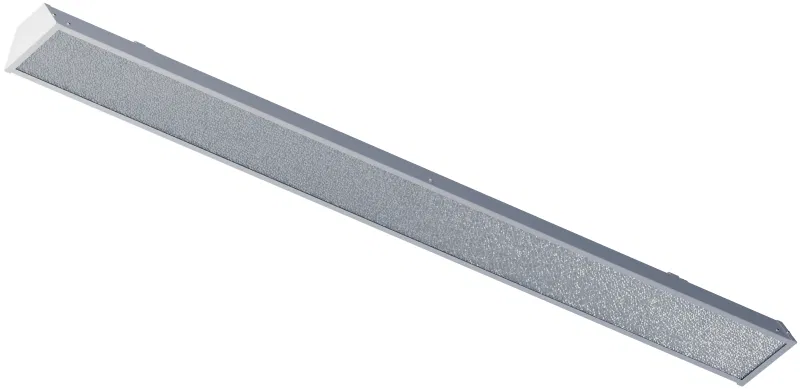

LED luminaire GR270/F 2.0 1215x207x50 45W 4000K IP40 mounting size 1188x180 with suspension brackets with frame prism diffuser DALI VARTON V1-R3-00270-30PRD-4004540
SKU: V1-R3-00270-30PRD-4004540
ETIM: EC002892
10,377 ₽
Get back 103 ₽ in points
Analogues by specifications
The GR270/F 2.0 series LED luminaire is an energy-efficient solution for use in administrative and retail premises. The high efficiency of the 2.0 series luminaires has allowed for reduced power consumption while maintaining light output at the level of classic office solutions. Suitable for installation in Grilyato-type ceilings and provides soft, diffused light. All-metal housing made of sheet steel with white powder coating. Mounting is carried out on Euro-hangers directly into the ceiling base via special bars fixed in the luminaire housing. The luminaire is equipped with a diffuser.
Without dimming
No
Supplied with lamp
Yes
Can be covered with thermal insulation
No
Built-in length
1195 мм
Built-in height/depth
50 мм
Height/depth
50 мм
0-10 V dimming
No
1-10V dimming
No
DALI dimming
Yes
DMX dimming
No
GPRS dimming
No
LineSwitch dimming
No
RF dimming
No
Zigbee dimming
No
Dimming depending on control mechanism
No
Voltage modulation dimming
No
Push-button dimming
No
Trailing-edge phase dimming
No
Leading-edge phase-cut dimming
No
Length
1215 мм
Colour rendering index
80-89 (class 1B)
Grille design
No (without)
Glow-wire test in accordance with IEC 60695-2-11
No (without)
Electric shock protection class
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Built-in luminaire energy efficiency class
A++, A+, A (LED)
Number of poles
5
Power factor
.95
Maximum power
45 Вт
Housing material
Steel
Diffuser/lampshade material
Structured plastic
Rated voltage up to
230 В
Rated voltage from
220 В
Rated luminous flux
5670 лм
Rated LED DC current from
141 мА
Ballast included
Yes
Suitable for ceiling fastening
Yes
Suitable for wall mounting
No
Suitable for continuous light lines
No
Suitable for surface mounting
No
Suitable for suspended mounting
Yes
Suitable for monitor workplace EN 12464-1
Yes
Suitable for number of light sources
1
Suitable for emergency lighting
No
Dimming potentiometer (built-in)
No
Designed for flush mounting
Yes
Programmable dimming
No
Fire protection "d"
No
Light distributor
Diffuser lens/optics/panel
DSI dimming
No
Current type
AC/DC
With motion sensor
No
With light sensor
No
With air circulation opening
No
Light output
Straight
Light distribution
Symmetrical
Touch dimming
No
Core cross-section
2.5 кв.мм
Sinusoidal dimming
No
Manufacturer's proprietary dimming system
No
Connection method
Pluggable terminal
IP protection rating
IP40
Ambient temperature up to
40 град.C
Ambient temperature from
1 град.C
Lamp type
Non-replaceable LED
Connection type
Terminating
Light beam angle
Extra wide beam > 80 deg
Impact resistance
IK01
Control device
LED current-controlled device
Housing color
White
Light color
White
Color temperature at
4000 К
Colour temperature from
4000 К
Lamp base (holder)
No (without)
Width
207 мм
Installation width
180 мм
Luminaire efficiency
126 лм/Вт
