EKF

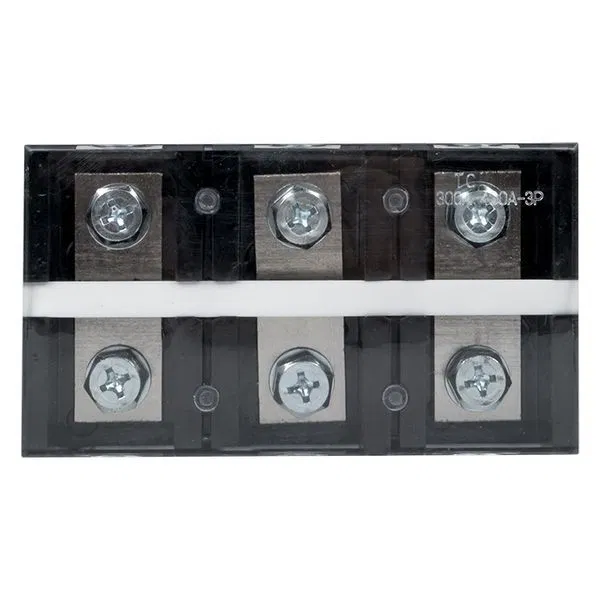

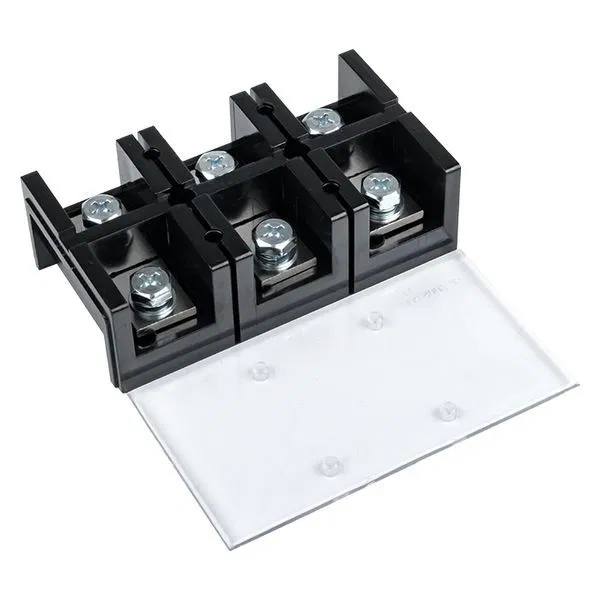

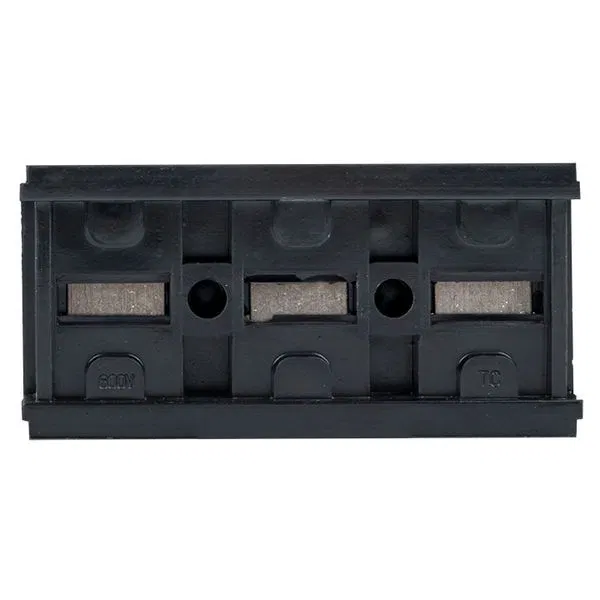

Terminal block TC-3003 up to 150mm2 300A 3 terminal pairs EKF tc-3003
SKU: tc-3003
ETIM: EC001284
Price on request
Analogues by specifications
Terminal blocks of the TV, TC, TK, BZD EKF PROxima series are designed for connecting and branching copper and aluminum conductors in AC electrical circuits with a voltage of up to 660 V and a frequency of 50 Hz, and are used as components in stationary installations.
Version tested for explosion protection "Ex e"
No
Number of terminals per pole
2
Number of poles
3
Housing insulation material
Thermoplastic
Rated voltage
660 В
Rated current In
300 А
Operating temperature
100 град.C
Operating temperature from
-30 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
150 кв.мм
Stranded flexible conductor cross-section from
150 кв.мм
Solid conductor cross-section to
150 кв.мм
Solid conductor cross-section from
150 кв.мм
Mounting method
Mounting plate/board
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
Black
Width/connection pitch
27 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
