IEK

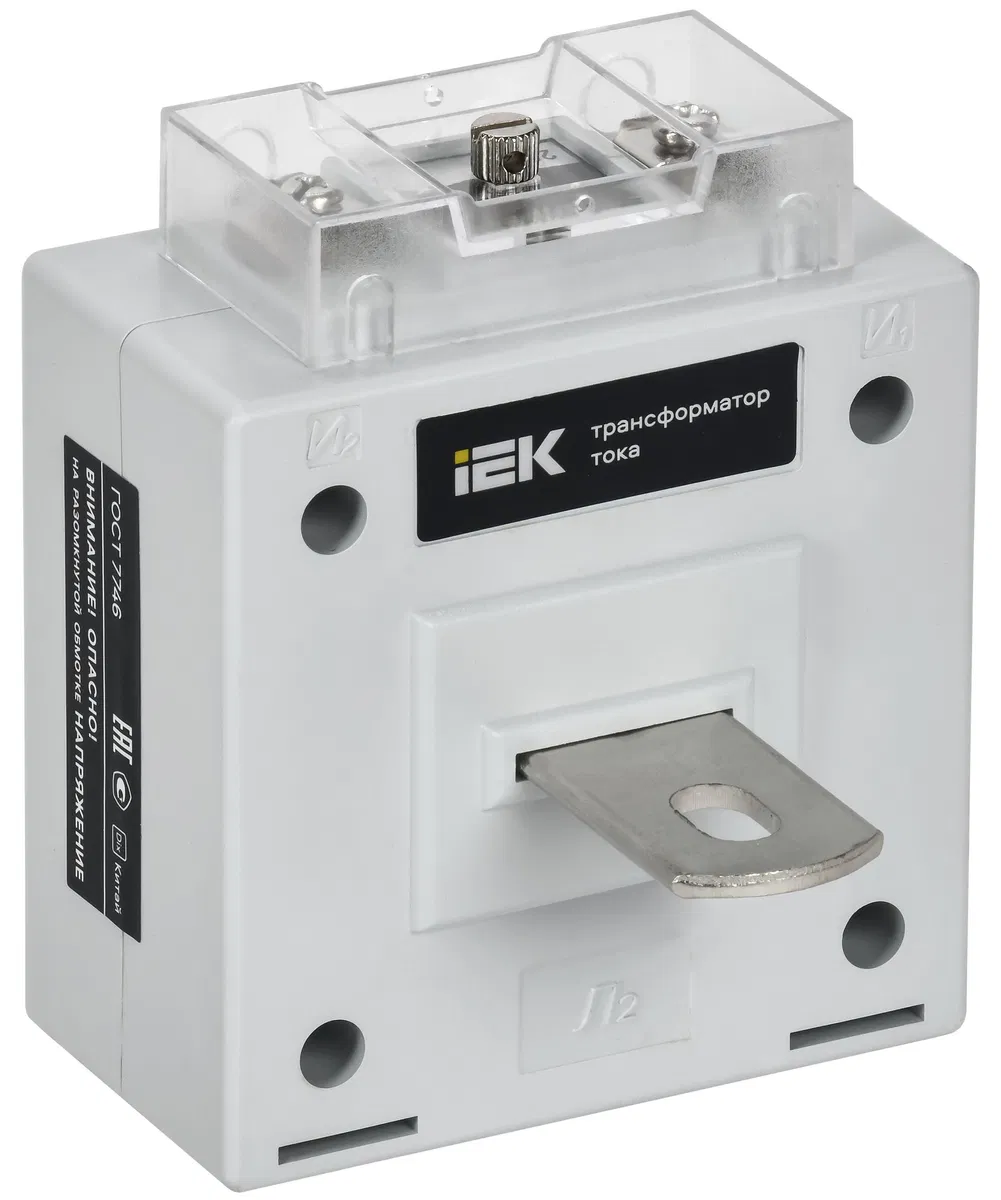

Current transformer TOP-0,66 20/5A 5VA 0.5S IEK ITP10-3-05-0020
SKU: ITP10-3-05-0020
ETIM: EC002048
71,928 ₽
Get back 719 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 36 шт
Analogues by specifications
No description available
Quick fastening
No
Design
Current transformer with primary winding
Measurement accuracy class
0.5S
Climatic version
UKhL3
Number of secondary windings
1
Maximum operating voltage
0.72
Rated secondary winding safety factor
5
Rated frequency
50
Rated secondary apparent power
5 В.А
Rated voltage
660 В
Rated secondary current
5 А
Rated instrument security factor
FS 5
Rated primary current
20 А
Secondary winding connection
Screw connection
Operating position
Any
With protection against contact with live parts
Yes
With copper busbar
Yes
Certified
Yes
IP protection rating
IP20
Operating temperature from
-45...50 град.C
