Generica (Группа IEK)
Residual Current Circuit Breaker (RCD) VD1-63 2P 16A 30mA GENERICA MDV15-2-016-030
SKU: MDV15-2-016-030
ETIM: EC000003
46,177 ₽
Get back 461 ₽ in points
Order multiple: 48 шт
Analogues by specifications
Stock by warehouse
Fast-acting protective switch VD1-63 (RCD) GENERICA - an electronic type device, voltage-dependent and reacting to differential current, without built-in overcurrent protection. Designed to protect humans from electric shock.
Weight
0.2 кг
Mounting installation depth
75 мм
Number of poles
2
Maximum supply cable cross-section
50 кв.мм
Mech. endurance
10000
Tightening torque from
2 Н·м
Rated non-tripping residual current
0.5
Rated leakage current
0.03
Rated conditional short-circuit current Icn
4500
Rated ultimate breaking capacity (Icw)
4.5 кА
Rated voltage
230 В
Rated current
16 А
Rated leakage current
.03 мА
Leakage current adjustment
No
Operating mode
Continuous-S1
Selective protection
No
Mounting method
On DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
4.5
Resistance to current surges
0.25 кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
2
Electrical endurance
4000
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
3039 ₽

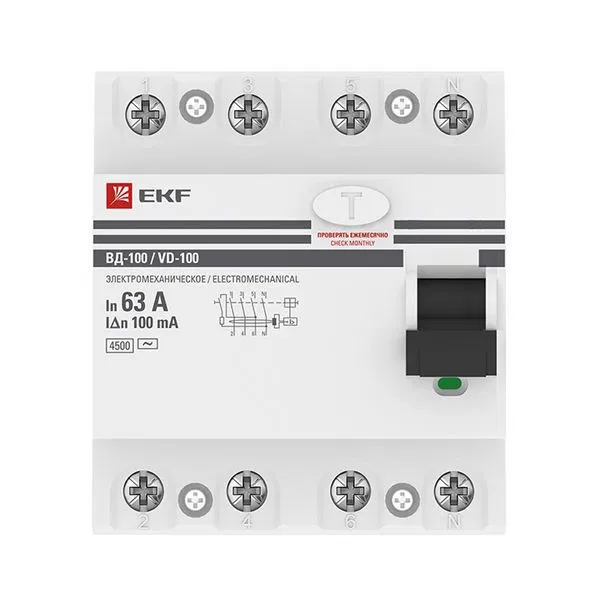

EKF Residual current device VD-100 4P 63A 100mA type AC electromechanical 4.5kA PROXIMA EKF elcb-4-63-100-em-pro
