Generica (Группа IEK)

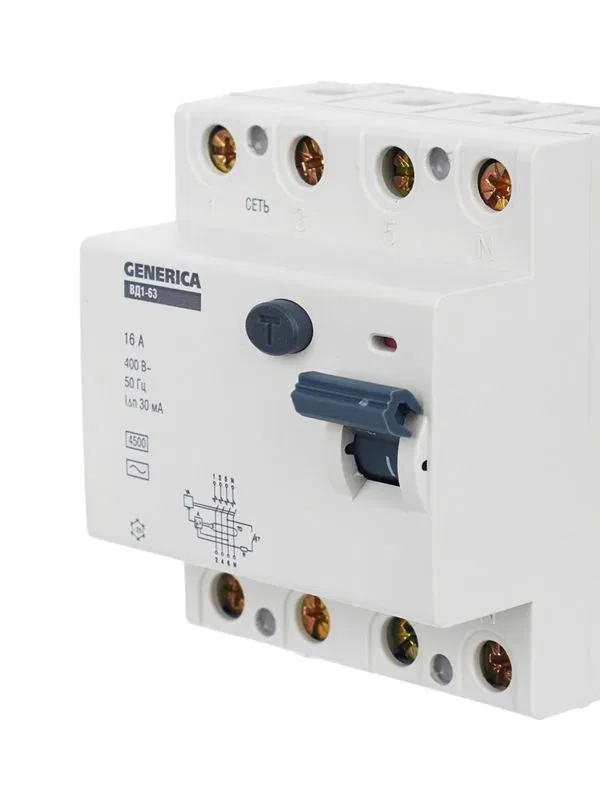

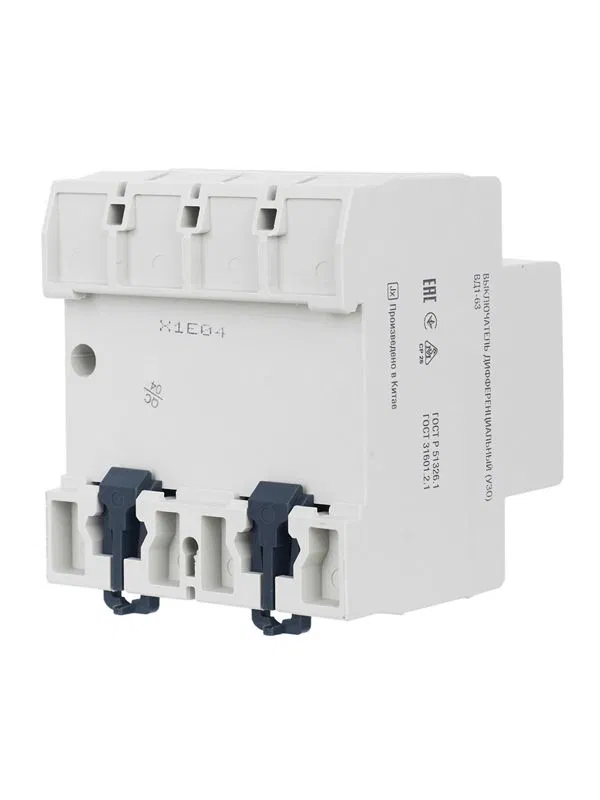

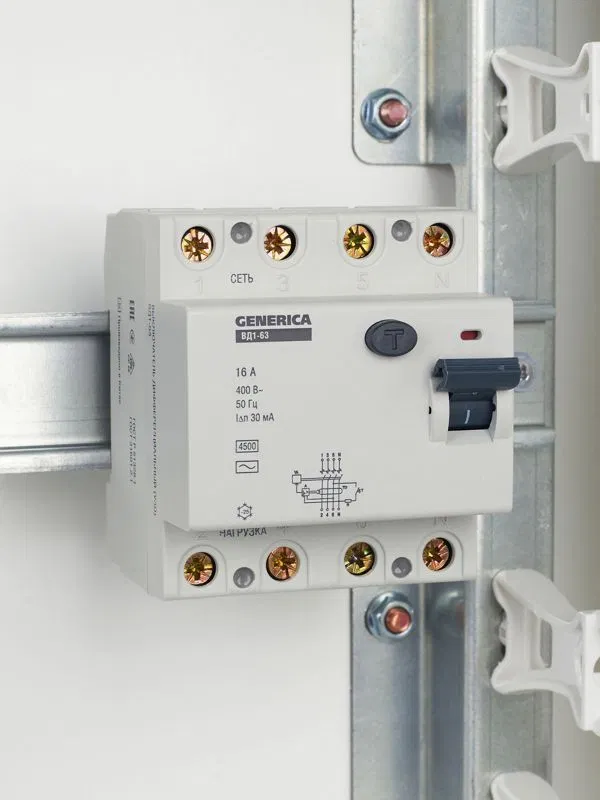

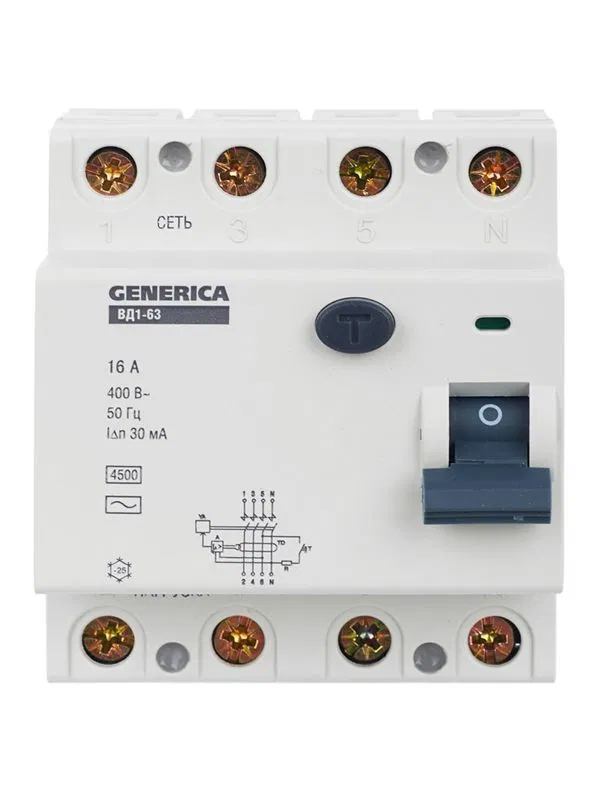

Residual Current Circuit Breaker (RCCB) VD1-63 4P 16A 30mA GENERICA MDV15-4-016-030
SKU: MDV15-4-016-030
ETIM: EC000003
1,625 ₽
Get back 16 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Weight
0.2 кг
Mounting installation depth
75 мм
Number of poles
4
Maximum supply cable cross-section
50 кв.мм
Mech. endurance
10000
Tightening torque from
2 Н·м
Rated non-tripping residual current
0.5
Rated leakage current
0.03
Rated conditional short-circuit current Icn
4500
Rated ultimate breaking capacity (Icw)
4.5 кА
Rated voltage
400 В
Rated current
16 А
Rated leakage current
.03 мА
Leakage current adjustment
No
Operating mode
Continuous-S1
Selective protection
No
Mounting method
On DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
4.5
Resistance to current surges
0.25 кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
4
Electrical endurance
4000
