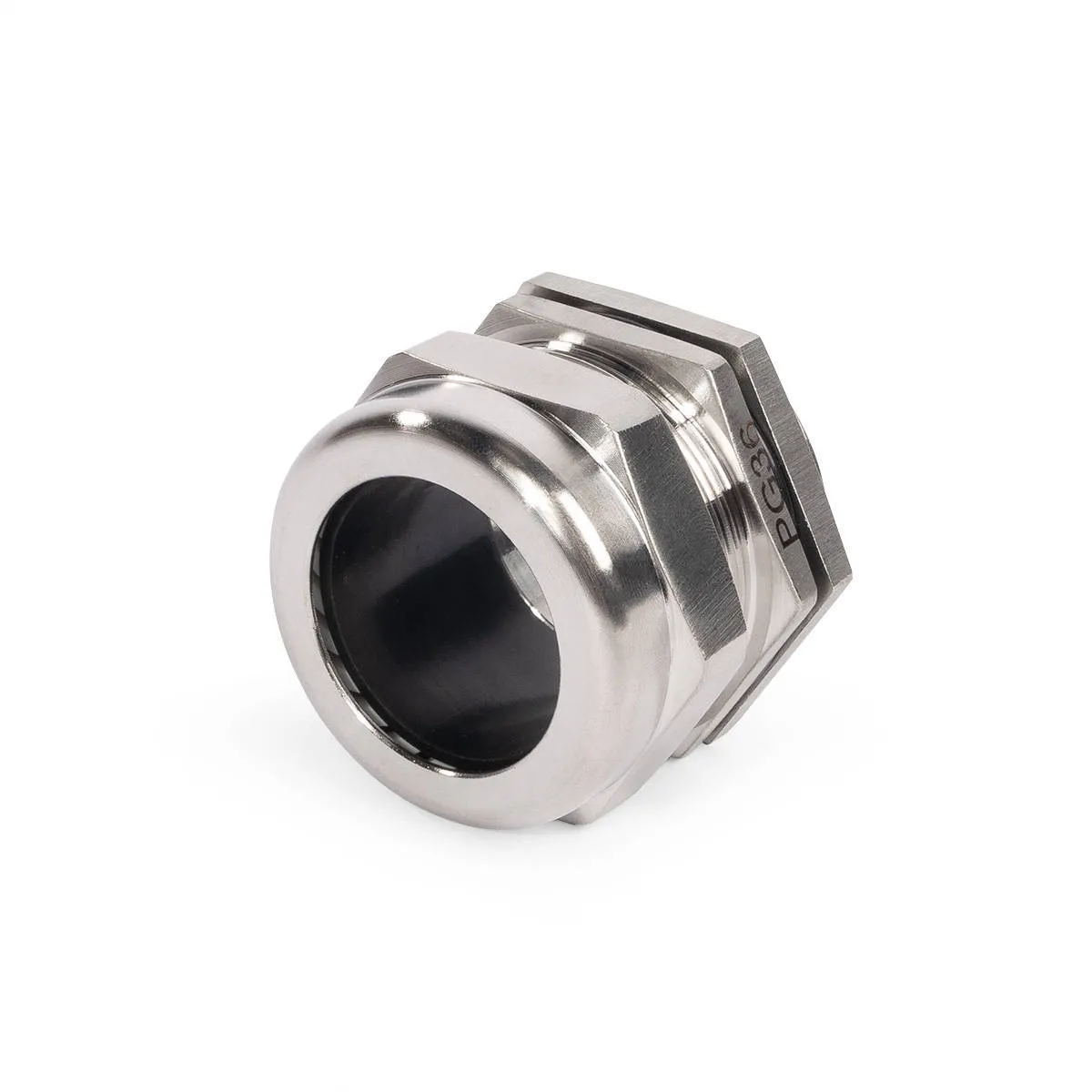

Stainless steel cable gland PGM 36 (25-33 mm) (INOX) 83628 Fortisflex
SKU: 83628
ETIM: EC000441
Price on request
Order multiple: 4 шт
Analogues by specifications
• For airtight cable and wire entry/exit in electrical equipment enclosures
• Enclosure material: stainless steel AISI 304
• Sealing material: neoprene
• Operating temperature: from -40 °C to +100 °C, briefly +120 °C
• Protection rating IP 68
• Thread type: PG
• Resistant to synthetic oils and all types of fuel
• Provides a tight grip on the cable thanks to a plastic insert and a rubber ring
• Possess special strength, durability, and resistance to aggressive environmental impacts
• Hole mounting tools:
• hydraulic systems for punching holes:
• PGPO-60
• PGPO-60A
• PGPO-115
• hydraulic presses for punching holes:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• PGAPO-60A
• MPO dies for punching round holes, perfom sets: NMPO-PG, NMPO-MG
Material type/grade
Stainless steel (V2A)
For gas explosion hazardous areas
No (without)
For cable diameter to
33 mm
For cable diameter from
25 mm
For dust explosion protection zone (EU ATEX directives)
No (without)
Kink protection
No
Design
Straight
Flat cable gland
Yes
Material
Metal
Halogen-free
Yes
Nominal metric/PG thread size
36
IP protection rating
IP68
Operating temperature to
100 °C
Operating temperature from
-40 °C
Thread type
PG
Sealing type
Sealing ring (gasket)
Impact-resistant
Yes
Color
Nickel
Thread pitch
1.5 mm
