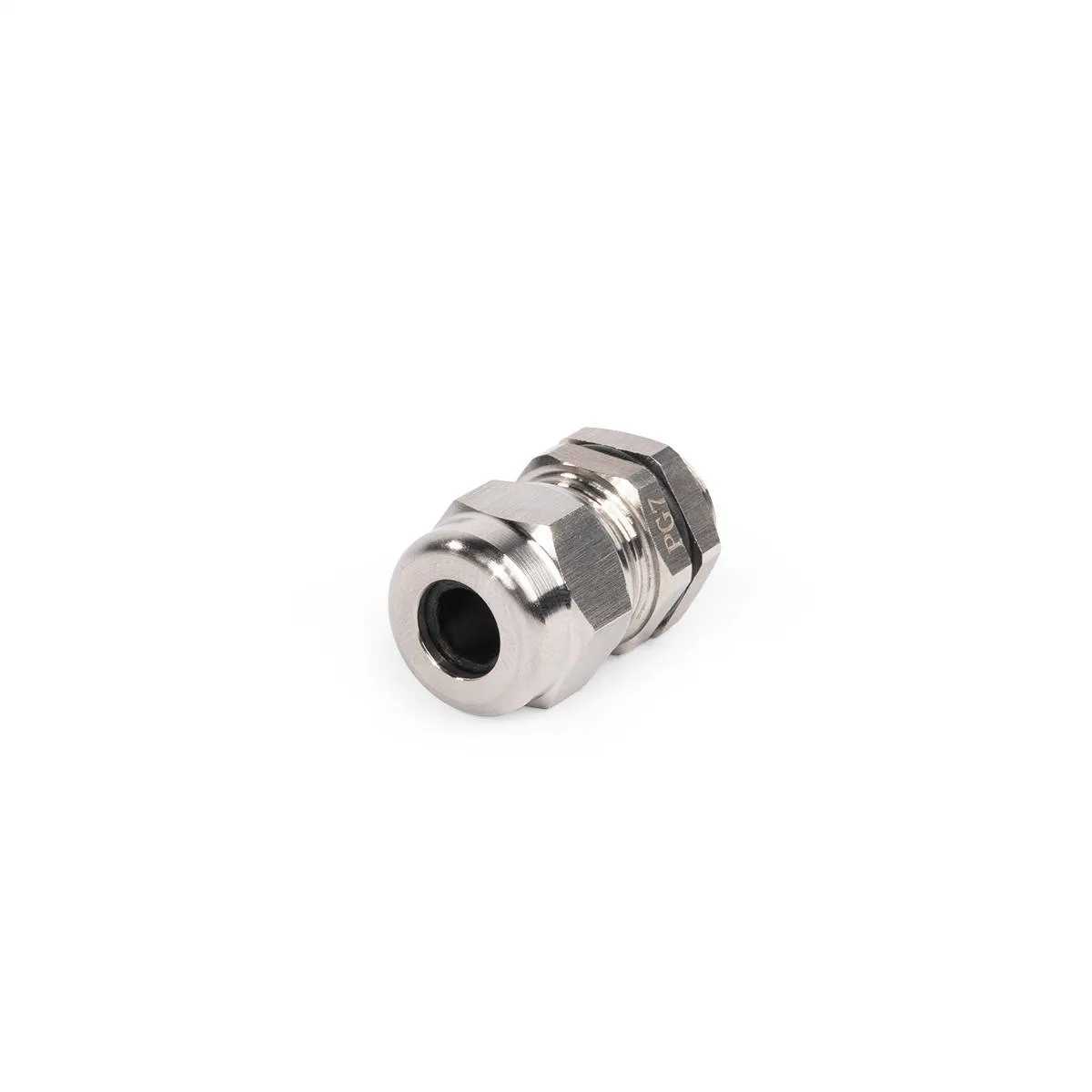

Stainless steel cable gland PGM 7 (3-6.5 mm) (INOX) 83621 Fortisflex
SKU: 83621
ETIM: EC000441
Price on request
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
• For airtight cable and wire entry/exit in electrical equipment enclosures
• Enclosure material: stainless steel AISI 304
• Sealing material: neoprene
• Operating temperature: from -40 °C to +100 °C, briefly +120 °C
• Protection rating IP 68
• Thread type: PG
• Resistant to synthetic oils and all types of fuel
• Provides a tight grip on the cable thanks to a plastic insert and a rubber ring
• Possess special strength, durability, and resistance to aggressive environmental impacts
• Hole mounting tools:
• hydraulic systems for punching holes:
• PGPO-60
• PGPO-60A
• PGPO-115
• hydraulic presses for punching holes:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• PGAPO-60A
• MPO dies for punching round holes, perfom sets: NMPO-PG, NMPO-MG
Material type/grade
Stainless steel (V2A)
For gas explosion hazardous areas
No (without)
For cable diameter to
6.5 мм
For cable diameter from
3 мм
For dust explosion protection zone (EU ATEX directives)
No (without)
Kink protection
No
Design
Straight
Flat cable gland
Yes
Material
Metal
Halogen-free
Yes
Nominal metric/PG thread size
7
IP protection rating
IP68
Operating temperature to
100 град.C
Operating temperature from
-40 град.C
Thread type
PG
Sealing type
Sealing ring (gasket)
Impact-resistant
Yes
Color
Nickel
Thread pitch
1.5 мм
