Legrand (группа IEK)

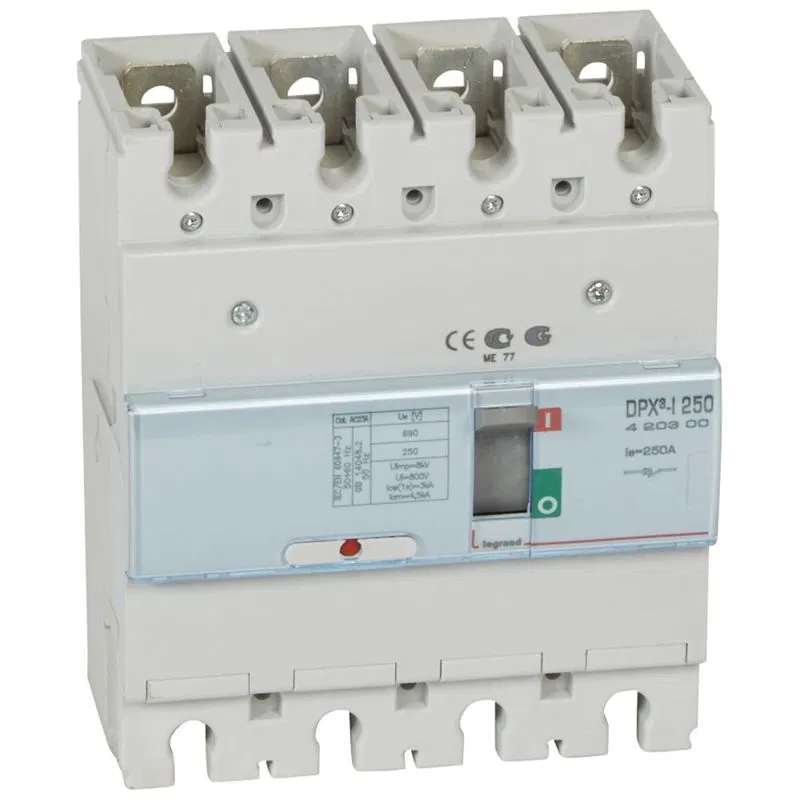

Circuit breaker 4p 250A DPX3 250 Leg 420300 Legrand
SKU: 420300
ETIM: EC000216
24685 ₽
Preorder
No description available
| Version as switch-disconnector | Yes |
| Version as main switch | Yes |
| Number of auxiliary NO contacts | 1 |
| Number of auxiliary changeover contacts | 1 |
| Number of auxiliary break contacts | 1 |
| Number of poles | 4 |
| Switching power at 400 V | 0 кВт |
| Design | Built-in fixed-mounted device |
| Maximum rated operational voltage Ue AC | 690 В |
| Motor drive optional | Yes |
| Independent trip unit | Yes |
| Rated DC current at AC-21, 400V | 250 А |
| Rated continuous current at AC-23, 400 V | 0 А |
| Rated power in AC-23 operating mode, 400 V | 100 кВт |
| Rated power at AC-3, 400 V | 0 кВт |
| Rated voltage at | 690 В |
| Rated voltage from | 220 В |
| Rated short-time withstand current Icw | 1.7 кА |
| Rated continuous current Iu | 250 А |
| Reversing design | No |
| With interlock | Yes |
| Ingress protection (IP) of front side | IP30 |
| Main electrical circuit connection type | Screw connection |
| Control element type | Toggle switch |
| Conditional rated short-circuit current Iq | 1.7 кА |
| Colour of control elements | Grey |
