DKC

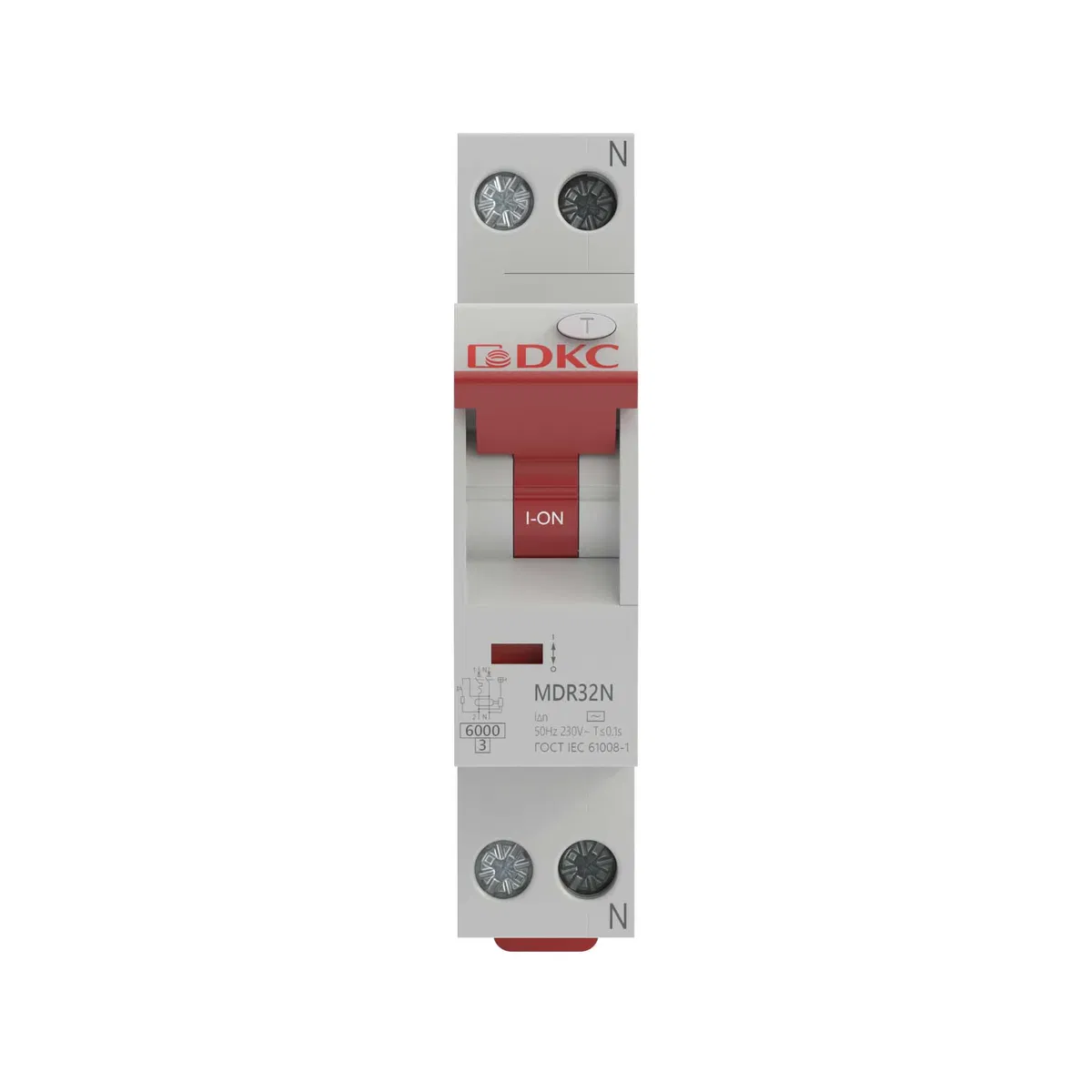

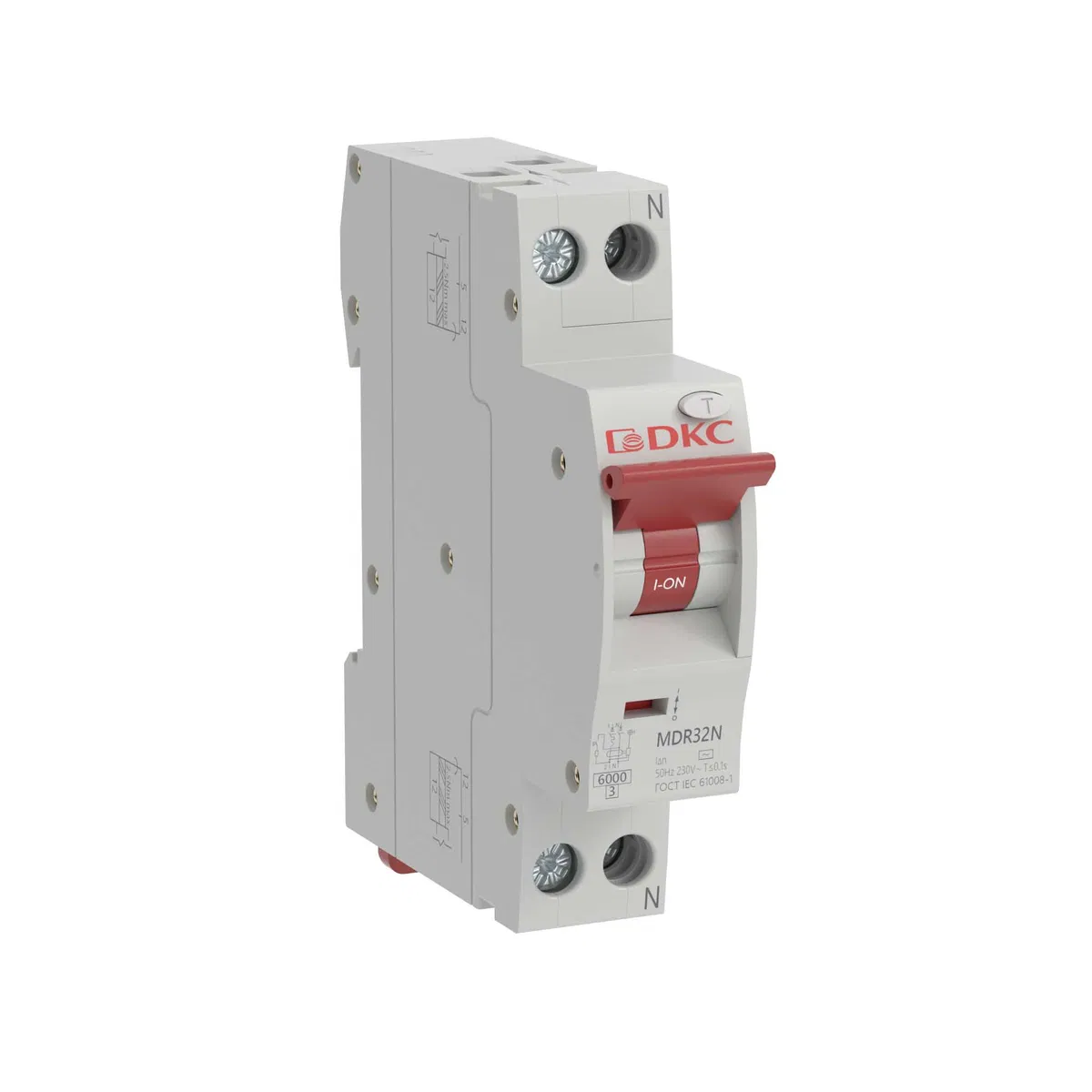

Compact residual current circuit breaker with overcurrent protection YON max (YON max) type MDR, 1P+N, 100mA, 20A, char. C, 6kA, type A MDR32N-1N3C20-A DKC
SKU: MDR32N-1N3C20-A
ETIM: EC000905
1,832 ₽
Get back 18 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Mounting installation depth
78.2 мм
Number of protected poles
1
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
6 кА
Rated short-circuit breaking capacity per EN 61009
6 кА
Rated impulse voltage
4 кВ
Rated voltage
240 В
Rated insulation voltage Ui
690 В
Rated current
20 А
Rated leakage current
100 мА
Total number of poles
2
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
16 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
16 кв.мм
IP protection rating
IP20
Residual current type
Please provide the text you would like me to translate.
Tripping characteristic
Without time delay
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency (Hz)
50 Hz
Width in modular units
1
