IEK

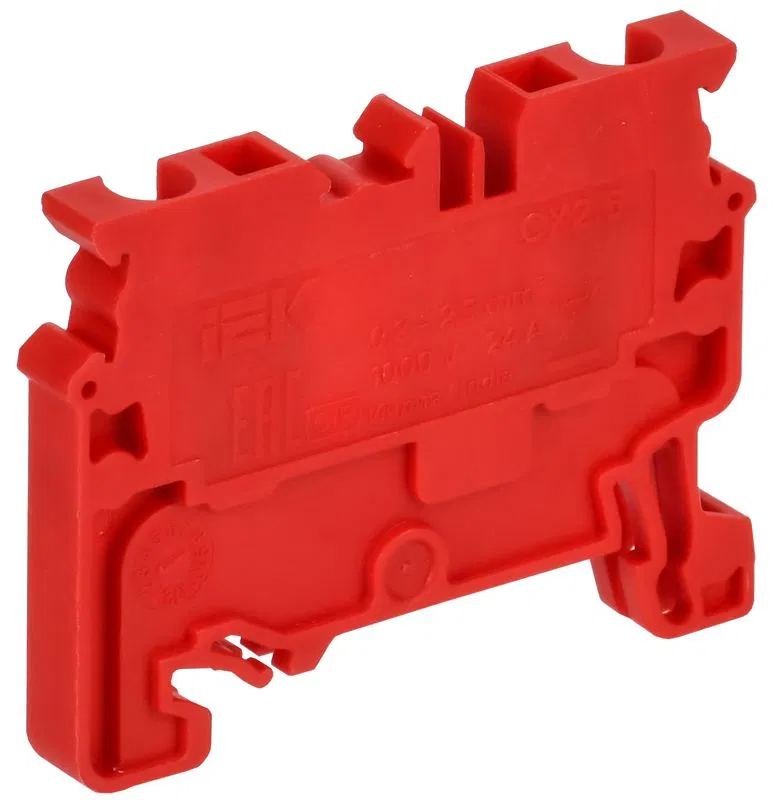

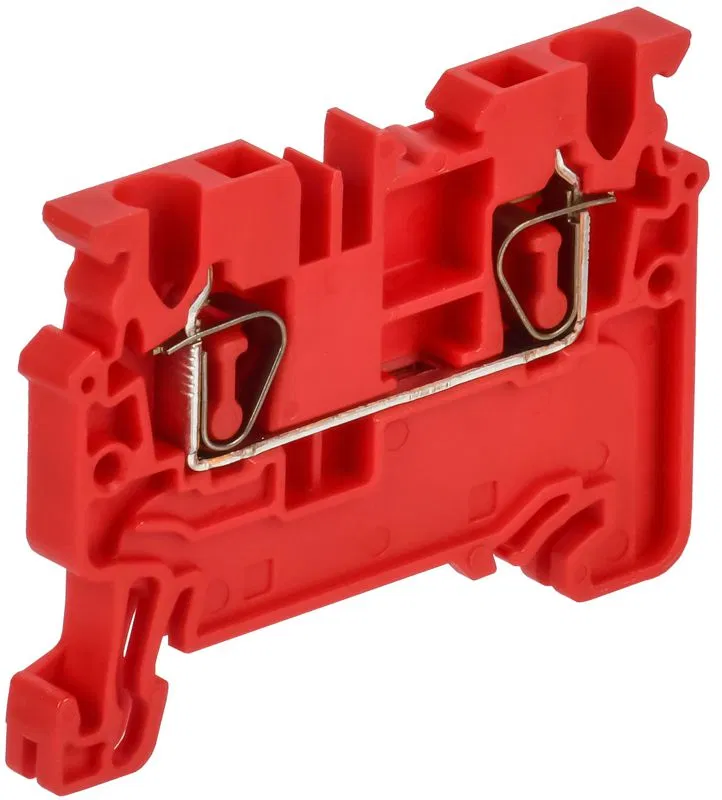

ARMAFIX Spring terminal CX2.5 pass-through red IEK AF-CT40-00-K04-002
SKU: AF-CT40-00-K04-002
ETIM: EC000897
7,300 ₽
Get back 73 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 100 шт
Analogues by specifications
Stock by warehouse
CX series spring clamp terminal blocks designed for reliable wire connection in automation and distribution systems. The terminals provide safe gas-tight connections using pre-tensioned spring clamps, making them ideal for industrial applications requiring high mounting density and connection reliability. Wire cross-section range from 2.5 to 16 sq.mm.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
37.5 мм
Length
50.00 мм
Number of terminals per level
2
Number of poles
1
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
24 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...2.5 мм²
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
0.2...2.5 кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
0.2...4.0 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...2.5 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Red
Color
Red
Width/connection pitch
5.0 мм
