IEK
Spring terminal with knife disconnect CXK2.5 ARMAFIX IEK AF-CT45-04-K03-002
SKU: AF-CT45-04-K03-002
ETIM: EC000902
145 ₽
Get back 1 ₽ in points
Analogues by specifications
Stock by warehouse
The terminals are equipped with a knife-type disconnection mechanism, which allows for easy breaking of electrical circuits for diagnostics or measurements. The design also provides separate connection points for using a test probe. CX series spring terminals are suitable for both standard applications and high vibration environments, such as marine and railway transport.
Minimum possible mounting height
42 мм
Length
62 мм
Length
62 мм
Cross blade design
No
Longitudinal blade design
Swivel/extending
Number of terminals per level
2
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
20 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...2.5 мм²
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
0.2...2.5 кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
0.2...4.0 кв.мм
Cross-section of extra-fine-stranded flexible conductor without ferrule to
2.5 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...2.5 кв.мм
With built-in test socket
No
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Grey
Colour
Grey
Width/connection pitch
5 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
437 ₽
DKC Disconnect Terminal, screw clamp, 2 connection points, 4 sq.mm, gray TUR-4-MT DKC
SKU: TUR-4-MT
419 ₽

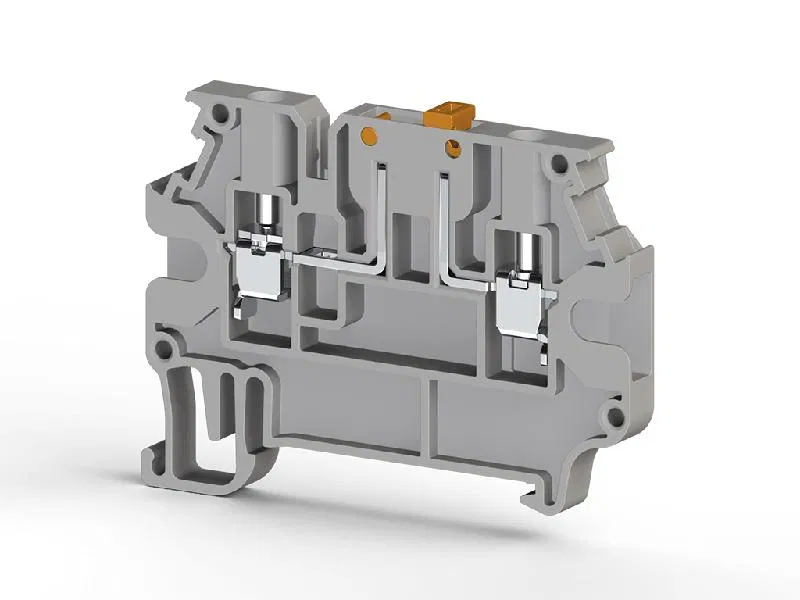

Klemsan Terminal block with disconnect for DIN-rail 2.5mm² blue AVK 2.5 A Klemsan 304411
