GL200-AO4 D-CARD EKF GL200-AQ4-DCD analog signal expansion module
SKU: GL200-AQ4-DCD
ETIM: EC001420
19,733 ₽
Get back 197 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
SIL in accordance with IEC 61508
2
Analogue output 0(4)-20 mA
Yes
Analog output 0-1V
No
Analogue output 0-10 V
Yes
Weight
0.074 кг
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Height
105 мм
Output, by voltage
Yes
Output, current
Yes
Galvanic isolation
Yes
Depth
85 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Accuracy class
0.5 %
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW serial RS-485 interfaces
0
Number of analog inputs
0 шт.
Number of analogue outputs
4 шт.
Number of 0(4)-20 mA analogue outputs
4
Number of 0-1V analog outputs
0
Number of 0-10V analog outputs
4
Configurable analogue inputs
No
Configurable analogue outputs
Yes
Configurable output signal
Yes
Maximum power consumption
2.88 Вт
Analogue output 0(4)-20 mA supply voltage from
20.4...28.8 В
Analog output 0-10V supply voltage from
20.4...28.8 В
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
No
TCP/IP protocol support
No
OWEN protocol support
No
Suitable for security systems
Yes
Operating temperature
55 град.C
Operating temperature from
-20...55 град.C
Analog output separation
16 бит
Supply voltage current type
DC (direct)
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Memory type
Flash
Connection type
Spring clamp connection
Performance level per EN ISO 13849-1
Level c
Width
12 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
7770 ₽

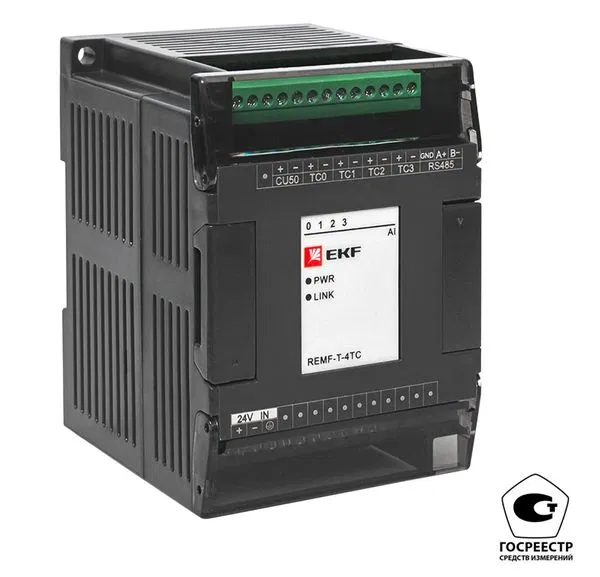

EKF REMF 4 PRO-Logic EKF resistance thermometer input module (with calibration) REMF-T-4TR-V
