Generica (Группа IEK)

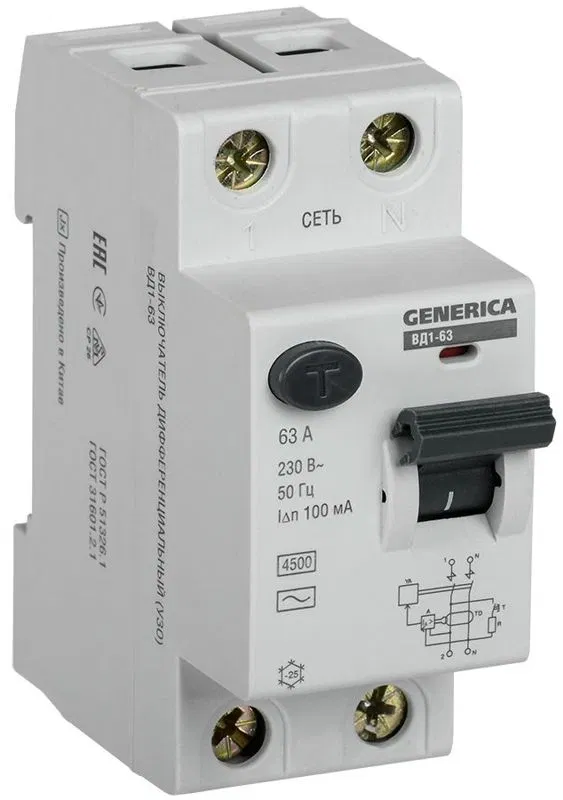

Residual Current Circuit Breaker (RCD) VD1-63 2P 63A 100mA GENERICA MDV15-2-063-100
SKU: MDV15-2-063-100
ETIM: EC000003
52,320 ₽
Get back 523 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 48 шт
Analogues by specifications
Fast-acting protective switch VD1-63 (RCD) GENERICA - an electronic type device, voltage-dependent and reacting to differential current, without built-in overcurrent protection. Designed to protect humans from electric shock.
Weight
0.2 кг
Additional equipment possible
No
Number of poles
2
Maximum supply cable cross-section
50 кв.мм
Mech. endurance
10000
Tightening torque from
2 Н·м
Rated non-tripping residual current
50.0
Rated leakage current
0.10
Rated conditional short-circuit current Icn
4500
Rated ultimate breaking capacity (Icw)
4.5 кА
Rated voltage
230 В
Rated voltage from
230 В
Rated current
63 А
Rated current
63 А
Rated leakage current
.1 мА
Shunt rated current
63 А
Leakage current adjustment
No
Adjustable delay time
No
Operating mode
Continuous-S1
With short-time delayed tripping
No
Selective protection
No
Mounting method
On DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
4.5
Conditional rated short-circuit current Iq
4.5 кА
Resistance to current surges
0.25 кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
2
Electrical endurance
4000
