IEK

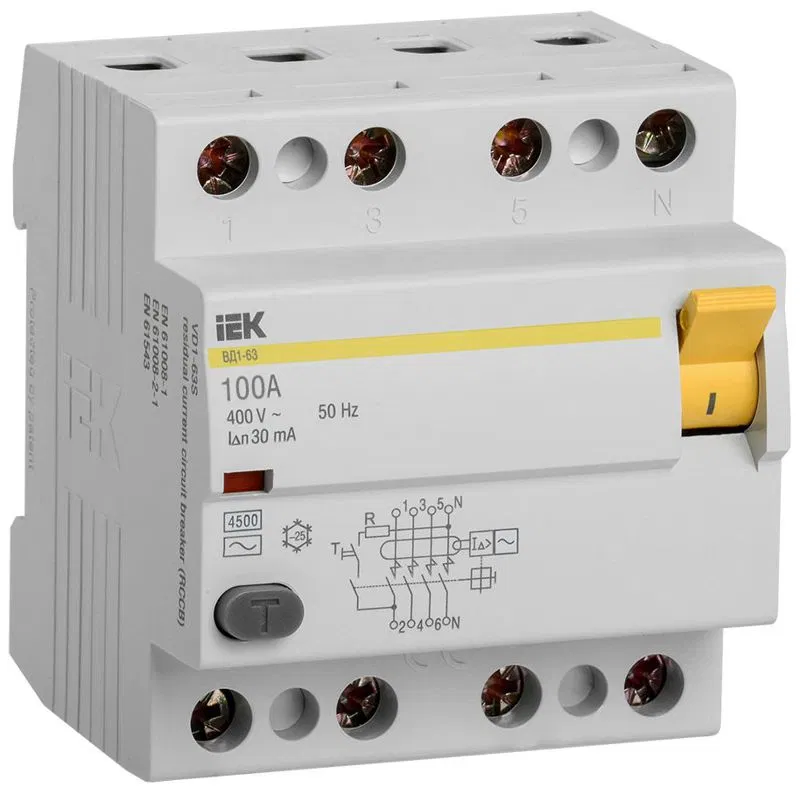

RCD VD1-63 4P 100A 30mA IEK MDV10-4-100-030
SKU: MDV10-4-100-030
ETIM: EC000905
3328 ₽
Price list (incl. VAT):
4438 ₽
Available July 31
Order multiple: 24
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Remote warehouse
Available
|
28 | шт | July 31 | July 31 |
Select a warehouse to order
Rapid-acting residual current circuit breaker, reacting to differential current, without built-in overcurrent protection. Designed to protect humans from electric shock during accidental unintentional contact with live parts of electrical installations and prevents fires due to leakage currents to ground. It has no power consumption and high mechanical wear resistance.
| Additional equipment possible | No |
| Mounting installation depth | 74.0 мм |
| Number of poles | 4 |
| Maximum supply cable cross-section | 50 кв.мм |
| Rated impulse withstand voltage | 6 |
| Rated leakage current | 0.03 |
| Rated ultimate breaking capacity (Icw) | 3 кА |
| Rated voltage | 400 В |
| Rated current | 100 А |
| Rated current | 100 А |
| Rated leakage current | .03 мА |
| With short-time delayed tripping | No |
| Selective protection | No |
| Mounting method | On DIN rail |
| IP protection rating | IP20 |
| Residual current type | Alternating current (AC) |
| Conditional rated residual short-circuit current | 4.5 |
| Conditional rated short-circuit current Iq | 4.5 кА |
| Resistance to current surges | 0.25 кА |
| Frequency | 50 Hz Гц |
| Frequency (Hz) | 50 Hz |
| Width in modular units | 4 |
